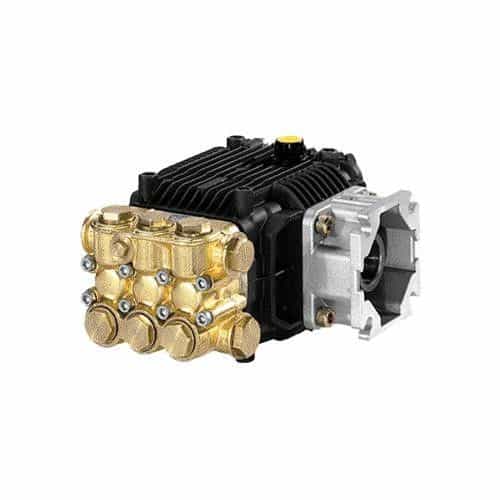

AR North America XMV2.5G26D-F25 Triplex Plunger Pump 2.5GPM, 2600PSI
Brand:
Mfr. Model #:
XMV25G26D-F25
KR Part #:
ARXMV25G26DF25
Weight:
15.00 lbs
Availability:
2
Low Inventory Get It Today
Horizontal gas engine triplex plunger pump. Features die-cast construction, brass head, solid ceramic plungers and water tight valve cages to provide for a longer life of your pump. Generates up to 3.0 GPM, with pressures up to 2700 PSI.
Technical Specifications
Max GPM: 2.5
Max PSI: 2600
RPM: 3400
Inlet Port: 1/2 inch
Max Temperature: 140 degrees F
Bore: 15 millimeter
Stroke: 6.2 millimeter
Shaft Diameter: 19 millimeter
Crankcase Capacity: 14.6 ounce
Product Description
AR North America 3400 RPM Pump
Durable horizontal gas engine triplex plunger pump features a die-cast body and brass head. Thick solid ceramic plungers provide for long life for internal components, while anodized precision cast cooling fins optimize heat dissipation. One-piece connecting rods are made of special alloy aluminum, oversized for strength and load disbursement. Oversized needle bearing on the drive sides and ball bearings on the non-drive side for proper shaft alignment. Water tight valve cages allow positive seating provide longer life of your pump.
Specifications
- Maximum Volume: 2.5 GPM
- Maximum Pressure: 2600 PSI
- Maximum Temperature: 140°F
- Inlet Port: 1/2" F
- Outlet Port: 3/8" F
