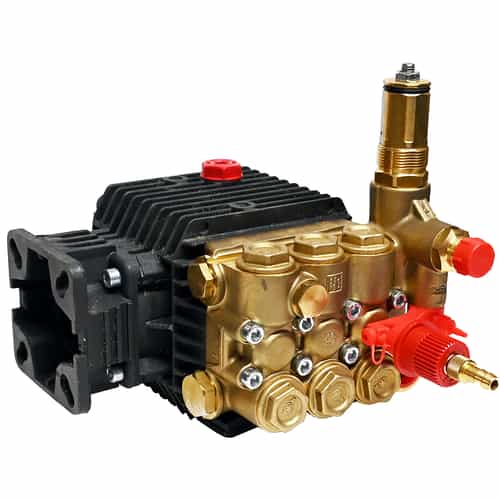

Compact design plunger pump for high-pressure cleaning applications. Arrives flanged for direct coupling to a SAE J609B gasoline engine. Includes a built-in unloader for pressure regulation.
The General Pump TT2028GBFUI Pump is part of the TT Series 51 line of plunger pumps. This general cleaning pump comes with a flange for gasoline engines (SAE J609) and a built-in unloader. Use in applications requiring a pump with a 2.8 GPM maximum flow rate and maximum pressure of 2000 PSI.
Specifications:
Maximum Volume: 2.8 GPM
Maximum Pressure: 2000 PSI
Maximum RPM: 3400 RPM
Inlet Port: 1/2" NPT-M
Discharge Port: 3/8" NPT-M
11.2 ounce crankcase capacity
Bore: 15mm
Stroke: 6.6mm
125 PSI maximum inlet pressure
3/4" hollow shaft
Flooded maximum inlet vacuum
Features:
Flanged for direct coupling to SAE J609 gas engines
Built-in TP unloader
Fixed downstream injector
Fully anodized crankcase
Oversized bearings
Sight glass for easier monitoring
Larger machined crankshaft - increases load potential and reduces fatigue
