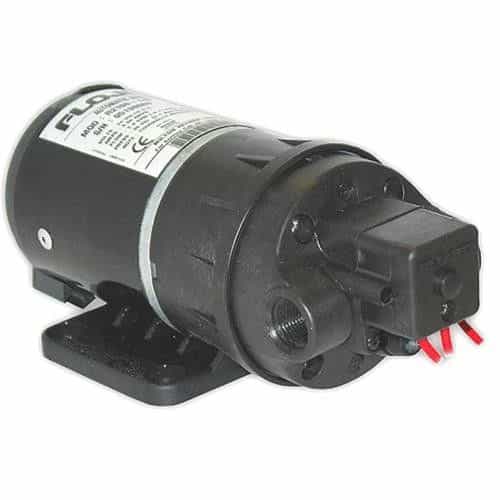

Flojet D3131V5011A Electric 12V Duplex II Diaphragm Pump - 1.6 GPM

Mfr. Model #:
KR Part #:
4.20 lbs
In Stock
Now Only!
Self-priming poly housing pump with 3/8" FNPT ports. Perfect for medium-duty jobs.
Prep 65

Prop 65


Technical Specifications

Max PSI: 60
Voltage DC: 12
Inlet Port: 3/8 inch
Max GPM: 1.6

Product Description

60 PSI Polypropylene Electric Diaphragm Pump

The Flojet D3131V5011A pump is an electric positive displacement pump. It has a maximum flow of 1.6 GPM, maximum pressure of 60 PSI, and self-primes up to 8 feet. Connections include 3/8 inch NPTF ports. Part of the Duplex II Series from Flojet, this model is intended for medium-duty applications.


  • 12VDC
  • 60 PSI max pressure rating
  • 1.6 GPM max flow rating
  • 3/8" female NPT ports
  • Viton check valves and diaphragms
  • Self priming up to 8 feet (2.4 m)
  • Can run dry without damage
  • Chemical resistant material
  • Internal bypass standard
  • Built-in back flow preventer
  • Heavy duty ball bearing drive system
  • Permanent magnet with solid state rectifier

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to
