General Pump TSF2421L High Flow Triplex Pump, 12.0 GPM, 2500 PSI, Left Shaft
Brand:
Mfr. Model #:
TSF2421L
KR Part #:
GPTSF2421L
Weight:
40.70 lbs
Call For Availability

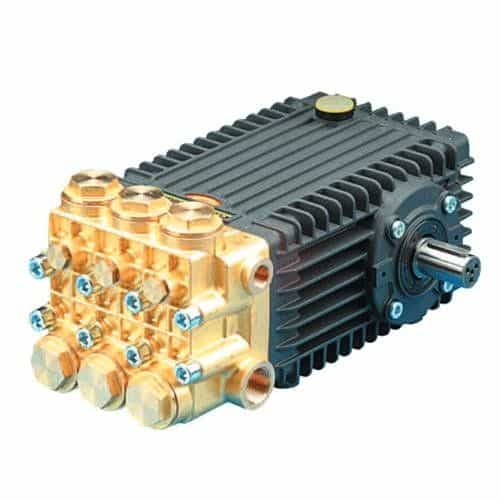

The preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings. Up to 12.0 GPM at 2500 PSI. Note: picture shows right shaft, but this is a left hand pump. You can find the right hand pump HERE.
Technical Specifications
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 1750
Bore: 24 millimeter
Stroke: 21 millimeter
Shaft Diameter: 24 millimeter
Inlet Port: 3/4 inch
Outlet Port: 3/8 inch
Crankcase Capacity: 40.6 ounce
Max GPM: 12
Horsepower: 20.5
Product Description
General Pump TSF 66 Series Pump with Left Shaft
The General Pump TSF2421L features one of the leading pump frames in the pressure cleaning industry. A large-capacity fully anodized crankcase and new plunger design with improved thermal shock resistance provide for durability and reliability. Produces consistent high flow at mid-range pressures.
Dimensions: 14.94" x 9.78" x 6.99"
Features
- New valve cap for improved hydrostatic performance
- Oversized roller bearings
- Innovative new seal design for extended seal life
- Left side crankshaft
Specifications
- Maximum Flow: 12.0 GPM
- Maximum Pressure: 2500 PSI
- RPM: 1750 RPM
- Max Temperature: 165° F
- Inlet Port: 3/4"-14 BSP-F
- Discharge Port: 3/8"-19 BSP-F
