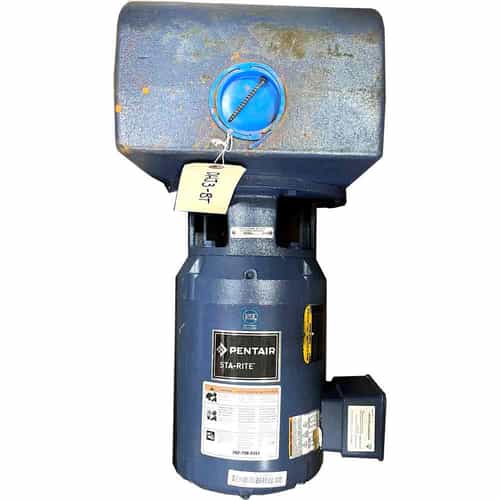

Sta-Rite DHJ3-170 D Series Centrifugal Pump - 5 HP, 162 GPM, 3450 RPM

Brand:
Mfr. Model #:
DHJ3-170
KR Part #:
DHJ3
Weight:
148.00 lbs
GTIN:
022315142091
Availability:
3
Low Stock Warning
MSRP
$4,447.00
Now Only!
$2,139.06
Fast, self-priming, high-head pump! Note: flange sold separately.
Freight Only

Freight Only




Technical Specifications

Voltage AC: 208-230/460
RPM: 3450
Phase: Three
Max Temperature: 140 degrees F
Max PSI: 60
Max GPM: 162
Inlet Port: 2 1/2 inch
Horsepower: 5

Product Description

High Head Pumping

The Sta-Rite DHJ3-170 pump is a quickly self-priming model with a high head. Designed for durability, this pump is formed of close-grained cast iron and features a bronze impeller with carbon-and-stainless steel shaft. Delivering 5 HP of power, a single DHJ3-170 pump can be used to operate 1-30 lawn sprinkling heads, is great for construction water jetting, agriculture irrigation, livestock watering, sump drainage, liquid transfer, car wash water reclaim, and other industrial supply applications!

Dimensions: 9" x 21.75" x 13.25"

  • Cast iron body, base, and diffuser
  • Carbon steel shaft inside a stainless steel sleeve
  • Brass impeller
  • 5 HP, 3 phase, 3450 RPM continuous-operation motor
  • Suction: 2.5"
  • Discharge: 2"
  • Maximum pressure: 60 PSI
  • Maximum head: 138.6 feet
  • Maximum flow: 162 GPM
  • Electrical connection: 208-230/460 volt
  • Sta-Rite item #DHJ3-170
  • Weight: 184 lbs.
