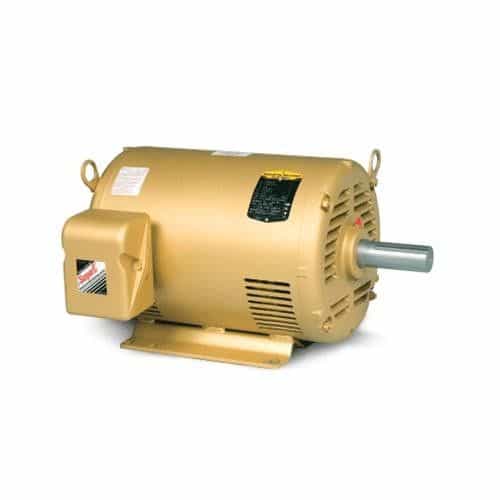

Baldor EM3313T Three Phase 230/460V Electric Motor - 10HP, 1770 RPM, OPSB

Brand:
Mfr. Model #:
EM3313T
KR Part #:
MBEM3313T
Weight:
131.00 lbs
GTIN:
781568104767
Out of Stock - Pre-Order Now
MSRP
$2,703.62
Now Only!
$1,802.51
NEMA electric motor designed for efficient operation under continuous or very frequent use. 3742M type motor with an steel 215T frame and an TEFC enclosure. 230/460 VAC, 10 HP, 1770 RPM.
Freight Only

Freight Only




Technical Specifications

RPM: 1770
Horsepower: 10
Voltage AC: 230/460
Amps: 12.5
Phase: Three
Shaft Diameter: 1.375 inch
Certifications: UR, CSA EEV, CSA

Product Description

Commercial Electric Motor

The Baldor EM3313T is a tough, industrial-grade electric motor for applications where the motor is operating continuously or frequently. Designed to conserve energy over extended time periods of use. This 230/460 volt AC motor has an OPSB enclosure and a steel 215T frame. Produces up to 10 horsepower and a maximum speed of 1770 RPM.

Specifications:

  • Maximum Horsepower: 10
  • Enclosure: OPSB
  • Frame: Steel 215T
  • Voltage: 230/460AC
  • Frequency: 60 Hz
  • Phase: 3
  • Duty Rating: Continuous
  • Speed: 1770 RPM
  • Overall Length: 17.45"
  • Motor Standards: NEMA
  • High Voltage Full Load Amps: 12.5
  • Motor Type:  3742M
  • Mounting Arrangement: F1
  • Shaft Diameter: 1.375"
  • Shaft Extension Location: Pulley End
  • Shaft Ground Indicator: No shaft grounding
  • Shaft Rotation: Reversible
  • Pulley End Bearing Type: Ball
  • Pulley Face Code: Standard
  • Pulley Shaft Indicator: Standard
  • Service Factor: 1.15
  • Number of Poles: 4
  • Power Factor: 82
  • Starting Method: Direct on line
  • Synchronous Speed @ Frequency: 1800 RPM @ 60 Hz
  • Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
  • Certifications: UR, CSA EEV, CSA
  • Ambient Temperature: 104° Fahrenheit
  • Base Indicator: Rigid
  • Bearing Grease Type: Polyrex EM (-20F +300F)
  • Current @ Voltage: 12.500 A @ 460.0 V, 25.000 A @ 230.0 V, 26.000 A @ 208.0 V
  • Design Code: B
  • Efficiency at 100% Load: 91.7%
  • Front Face Code: Standard
  • Insulation Class: F
  • Inverter Code: Inverter ready
  • KVA Code: H
  • Lifting Lugs: Standard
  • Locked Bearing Indicator: No locked bearing
  • Motor Lead Exit: Ko Box
  • Motor Lead Termination: Flying leads
  • Motor Lead Quantity/Wire Size: 9 @ 14 AWG

UPC:

  • 781568104767
