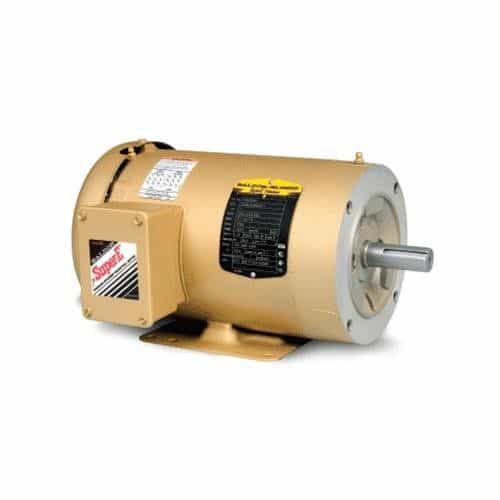

Baldor CEM3713T Electric Totally Enclosed Fan Cooled Motor - 15 HP, 3500 RPM, 3 PH

Brand:
Mfr. Model #:
CEM3713T
KR Part #:
MBCEM3713T
Weight:
167.00 lbs
GTIN:
781568603628
Out of Stock - Pre-Order Now
MSRP
$4,321.96
Now Only!
$2,881.45
A 3 phase motor from Baldor. Use in general purpose applications. Handles a maximum speed of 3500 RPM.
Freight Only

Freight Only




Product Description

TEFC Electric Motor

The Baldor CEM3713T is a totally enclosed fan cooled electric motor. It handles a maximum speed of 3500 RPM and produces an output of 15 HP. The 215TC frame is constructed with steel. Features a direct on line starting method typically used with 3 phase motors. Designed to meet NEMA standards and handle general purpose applications.

Specifications:
  • Catalog Number: CEM3713T
  • Enclosure: TEFC
  • Frame: 215TC
  • Frame Material: Steel
  • Frequency: 60.00 Hz
  • Output @ Frequency: 15.000 HP @ 60 HZ
  • Phase: 3
  • Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
  • Voltage @ Frequency:
  • 460.0 V @ 60 HZ
  • 230.0 V @ 60 HZ
  • XP Class and Group: None
  • XP Division: Not Applicable
  • Agency Approvals:
  • UR
  • CSA EEV
  • CSA
  • Ambient Temperature: 40 °C
  • Auxiliary Box: No Auxiliary Box
  • Auxiliary Box Lead Termination: None
  • Base Indicator: Rigid
  • Bearing Grease Type: Polyrex EM (-20F +300F)
  • Blower: None
  • Current @ Voltage:
  • 17.000 A @ 460.0 V
  • 34.000 A @ 230.0 V
  • 36.800 A @ 208.0 V
  • Design Code: A
  • Drip Cover: No Drip Cover
  • Duty Rating: CONT
  • Efficiency @ 100% Load: 91.0 %
  • Electrically Isolated Bearing: Not Electrically Isolated
  • Feedback Device: NO FEEDBACK
  • High Voltage Full Load Amps: 17.0 a
  • Front Face Code: Standard
  • Front Shaft Indicator: None
  • Heater Indicator: No Heater
  • Insulation Class: F
  • Inverter Code: Inverter Ready
  • KVA Code: J
  • Lifting Lugs: Standard Lifting Lugs
  • Locked Bearing Indicator: Locked Bearing
  • Motor Lead Exit: Ko Box
  • Motor Lead Termination: Flying Leads
  • Motor Lead Quantity/Wire Size: 9 @ 14 AWG
  • Motor Type: 3752M
  • Mounting Arrangement: F1
  • Number of Poles: 2
  • Overall Length: 21.26 IN
  • Power Factor: 89
  • Product Family: General Purpose
  • Pulley End Bearing: Type Ball
  • Pulley Face Code: C-Face
  • Pulley Shaft Indicator: Standard
  • Rodent Screen: None
  • Service Factor: 1.15
  • Shaft Diameter: 1.375 IN
  • Shaft Extension Location: Pulley End
  • Shaft Ground Indicator: No Shaft Grounding
  • Shaft Rotation: Reversible
  • Shaft Slinger Indicator: No Slinger
  • Speed: 3500 rpm
  • Speed Code: Single Speed
  • Motor Standards: NEMA
  • Starting Method: Direct on line
  • Thermal Device - Bearing: None
  • Thermal Device - Winding: None
  • Vibration Sensor Indicator: No Vibration Sensor
  • Winding Thermal 1: None
  • Winding Thermal 2: None
Features:
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
