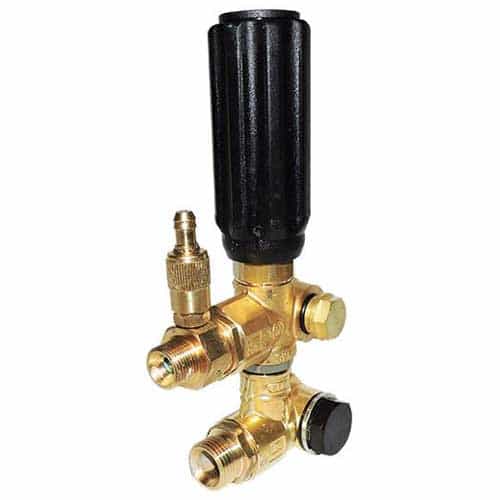

AR North America AR20399 Adjustable Unloader for RK, RR, XM Series
Brand:
Mfr. Model #:
AR20399
KR Part #:
AR20399
Weight:
2.25 lbs
The AR20399 brass adjustable unloader has a maximum pressure of 3650 PSI. Equipped with a 1/2 inch inlet port and a 3/8 inch discharge port. Ships with mounting bolts.
Technical Specifications
Max PSI: 3650
Inlet Port: 1/2 inch
Product Description
Gymatic 3/B Bolt-on Unloader
This Gymatic 3/B unloader valve is compatible with RK, RR, and XM Series pumps. Its features include: 1/2" male inlet, 3/8" male outlet, and a built-in adjustable chemical injector. This unloader valve is rated for 3-5.5 GPM and up to 3650 PSI.
- Adjustable pressure up to 3650 PSI
- Forged brass body
- Unloads pressure in entire system when in bypass
- Inlet Port: 1/2" NPTM
- Discharge Port: 3/8" NPTM
- Internal brass by-pass
- Comes complete with mounting bolts
- Fits the following AR North America pumps: RK, RR, and XM Series
