General Pump TT9061EBFL Plunger Pump with Electric Motor Flange - Left Shaft, 2.11GPM, 1500PSI, 3400RPM
Brand:
Mfr. Model #:
TT9061EBFL
KR Part #:
GPTT9061EBFL
Weight:
13.20 lbs
Availability:
2
Plunger pump with brass manifold, aluminum crankcase, 3 solid ceramic plungers, and an electric motor flange. Ideal pump choice for high-pressure general cleaning applications. 1500 PSI, 2.11 GPM, 3400 RPM.

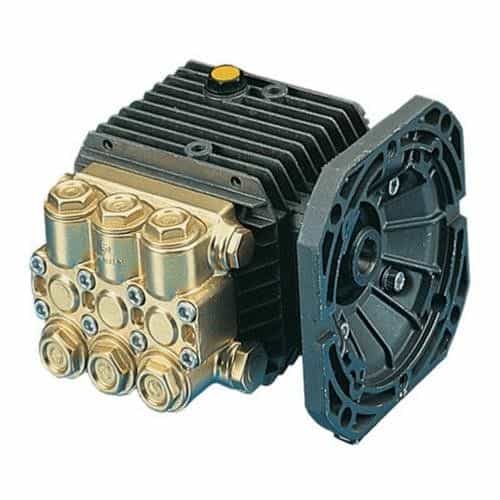

NOTE: picture shows right shaft, but this is a left hand pump.
Technical Specifications
Max PSI: 1500
Max GPM: 2.11
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 11.2 ounce
Inlet Port: 3/8 inch
Max Temperature: 165 degrees F
Shaft Diameter: 16 millimeter
Stroke: 5 millimeter
Product Description
Left Shaft Plunger Pump
The General Pump TT9061EBFL Pump is a triplex plunger pump with a maximum flow rate of 2.11 GPM and a maximum pressure of 1500 PSI. Includes a flange that mounts NEMA 56C electric motors with a maximum speed of 3400 RPM. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and water circulation applications!
This model has a shaft on the left side of the pump.
Dimensions: 7.2" x 7.2" x 5.5"
Specifications:
- 1500 PSI maximum pressure
- 125 PSI maximum inlet pressure
- 2.11 GPM maximum flow rate
- 3400 maximum RPM
- 5/8" (16mm) shaft diameter - hollow shaft
- 11.2 ounce crankcase capacity
- 3/8" inlet port
- 1/4" discharge port
- 6.6mm stroke
- 15mm bore
- 165° degrees Fahrenheit maximum temperature
- Left shaft
- 3' water inlet
- Weight: 13.2 lbs.
Features:
- Forged brass manifold with exclusive lifetime warranty
- Die-cast annodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning applications
- Comes standard with NEMA 56C electric motor mounting flange
