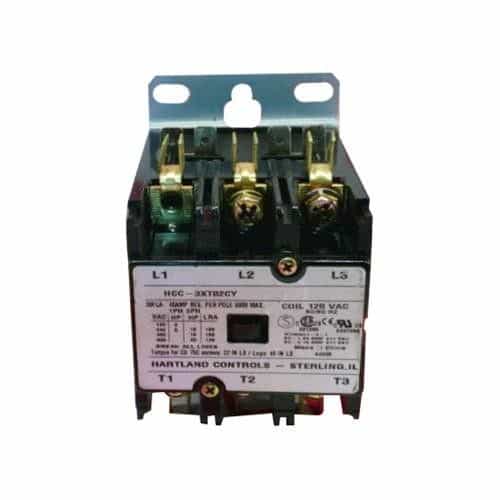

Hartland Controls HCCY3XT02CY Electric Motor Contactor - 120 VAC, 3-Pole

Brand:
Mfr. Model #:
HCCY3XT02CY
KR Part #:
MS0115
Weight:
1.01 lbs
Low Stock Warning
MSRP
$71.88
Now Only!
$43.69
A contactor for electric motors. Features 3 poles. Compatible with 120 VAC electrical connections.
Prep 65

Prop 65




Technical Specifications

Voltage AC: 120
Max Temperature: 150 degrees F
Min Temperature: -40 degrees F

Product Description

120 VAC Contactor

The Hartland Controls HCCY3XT02CY is a contactor designed for use with electric motors. It is designed with 3 poles and a 120 volt coil. This contactor is compatible with 120 VAC electrical connections. Operates at a temperature range of -40 to 150 degrees Fahrenheit. Contacts are made with silver cadmium oxide for reliability and high conductivity.


Specifications and Features:
  • Silver cadmium oxide contacts
  • Insulation system: 130 degrees Celsius Class B
  • Temperature range: -40 to 150 degrees Fahrenheit
  • Power pole terminations: #10-32 screw or box lug
  • Power terminals: Quad .250" QC
  • Nominal coil resistance ohms: 7
  • Maximum pick up voltage: 180
  • Nominal inrush VA @ 60 Hz: 50.8
  • Nominal sealed VA @ 60 Hz: 6.2
  • Maximum coil voltage: 132

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
