Hartland Controls HCCY2XQ02AAC Electric Motor Contactor - 24 VAC, 2-Pole
Brand:
Mfr. Model #:
HCCY2XQ02AAC
KR Part #:
MS0100
Weight:
0.64 lbs
A contactor for electric motors. Features 2 poles. Compatible with 24 VAC electrical connections.
Prop 65
Technical Specifications
Voltage AC: 24
Max Temperature: 150 degrees F
Min Temperature: -40 degrees F
Product Description
24 VAC Contactor

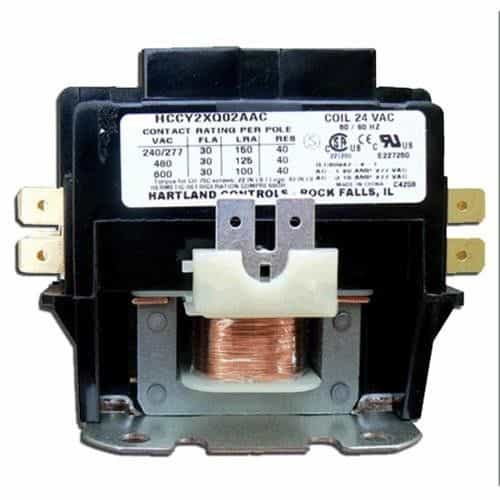

The Hartland Controls HCCY2XQ02AAC is a contactor designed for use with electric motors. It is designed with 2 poles and a 24 volt coil. This contactor is compatible with 24 VAC electrical connections. Operates at a temperature range of -40 to 150 degrees Fahrenheit. Contacts are made with silver cadmium oxide for reliability and high conductivity.Specifications and Features:
- Silver cadmium oxide contacts
- Insulation system: 130 degrees Celsius Class B
- Temperature range: -40 to 150 degrees Fahrenheit
- Power pole terminations: #10-32 screw or box lug
- Power terminals: Quad .250" QC
- Nominal coil resistance ohms: 18
- Maximum pick up voltage: 18
- Nominal inrush VA @ 60 Hz: 17.9
- Nominal sealed VA @ 60 Hz: 4.7
- Maximum coil voltage: 30
- Note: replacement for old KR Part #s MS0120 and MS0125
