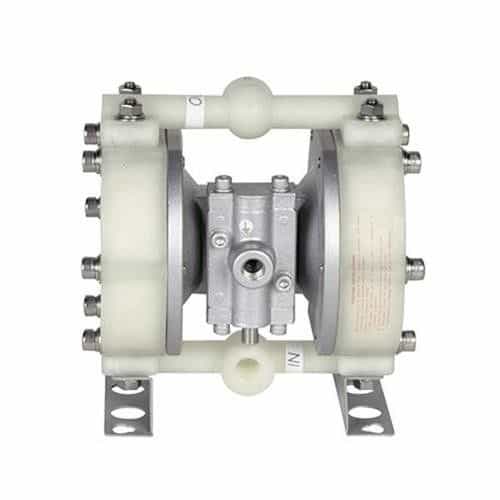

Yamada DP-10BPT Polypropylene Air-Operated Double Diaphragm Pump - 6 GPM, PTFE, 3/8 NPT

Brand:
Mfr. Model #:
DP-10BPT
KR Part #:
YADP10BPT
Weight:
8.58 lbs
GTIN:
814338023279
In Stock
MSRP
$595.00
Now Only!
$446.25
Poly body air-operated pump with aluminum motor and two diaphragms. Has a maximum flow rate of 6 GPM. This model includes PTFE (Teflon) elastomers, diaphragms, and ball valve.



Technical Specifications

Inlet Port: 3/8 inch
Max GPM: 6
Max PSI: 100
Outlet Port: 3/8 inch
RPM: 300
Max Temperature: 180 degrees F

Product Description

PTFE Seals Polypropylene DP-10 Series Pump

The Yamada DP-10BPT Pump is an air-operated dual diaphragm pump with a maximum flow rate of 6 GPM and a maximum air pressure of 100 PSI. This AODD pump has a polypropylene body and an aluminum motor. The diaphragm, ball valve, and o-rings are made with PTFE material.
Please see the Yamada Corrosion Guide under "Manuals" for chemical compatibility.


Specifications:

  • 6 GPM
  • Diaphragms: PTFE
  • Ball Valve: PTFE
  • O-Rings: PTFE
  • Inlet and Outlet Ports: 3/8" Female NPT
  • Air Inlet: 1/4" Female NPT (includes ball valve)
  • Air Exhaust: 3/8" Female NPT (includes silencer)
  • Maximum Liquid Temperature: 180° Fahrenheit
  • Air Supply Pressure: 20 to 100 PSI (1.4 to 7 kgf/cm_)
  • Maximum Solid: 1/32"
  • Maximum Suction Life: 10 feet
  • RPM: 300 (cycle speed)
  • Weight: 8.58 lbs.

Applications:

  • Car Wash
  • Washing/Cleaning Systems
  • Chemical Delivery/Transfer
  • Gas/Petroleum
  • Paints/Dyes
  • Mining
  • Printing/Ink
  • Stone/Clay/Glass
  • Water Treatment

UPC:

  • 814338023279
