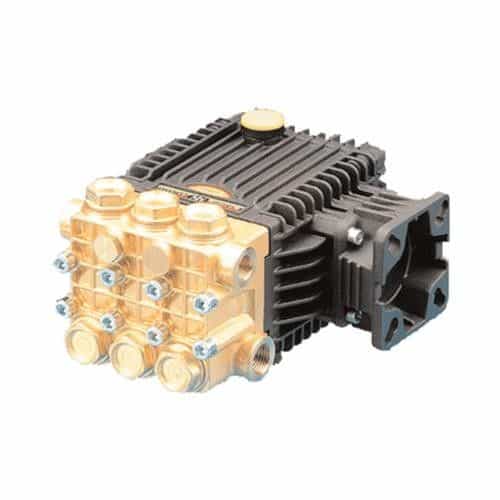

General Pump TX1508G6 Triplex Plunger Pump - 3 GPM, 3000 PSI, 3400 RPM
Brand:
Mfr. Model #:
TX1508G6
KR Part #:
GPTX1508G6
Weight:
18.00 lbs
GTIN:
682491114741
Availability:
3
IN STOCK ALTERNATIVE
General Pump EP1508G6 Triplex Plunger Pump with Gas Flange, 3.4 GPM, 3045 PSI, 3/4 Inch Hollow Right Shaft
SKU: GPEP1508G6
Click to View
A 63 Series plunger pump. Triplex designed with a forged brass manifold. Generates a flow rate of 3 GPM.
Technical Specifications
Bore: 15 millimeter
Stroke: 8 millimeter
Shaft Diameter: 3/4 inch
RPM: 3400
Crankcase Capacity: 14 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Max GPM: 3
Max PSI: 3000
Horsepower: 9.2
Product Description
3 GPM - 63 Series Gas Driven Pump
The General Pump TX1508G6 is a triplex plunger pump from the TX Series “63” line of pumps. It features a 3/4" hollow shaft with an SAE J609 flange for a gas engine. Manifold features a forged brass construction for corrosion resistance and strength. This pump delivers a maximum flow rate of 3 GPM and tolerates a maximum pressure of 3000 PSI.Specifications:
- Maximum Volume: 3.0 GPM
- Maximum Discharge Pressure: 3000 PSI
- Horsepower: 9.2 GBHP
- Maximum Pump Speed: 3400 RPM
- Maximum Inlet Pressure: 125 PSI
- Minimum Inlet Pressure: Flooded
- Plunger Bore: .591 in. / 15 mm
- Plunger Stroke: .315 in. / 8 mm
- Oil Capacity: 14.0 oz.
- Maximum Fluid Temperature: 165 Degree F
- Inlet Port Thread: 1/2-14 BSPP-F
- Discharge Port Thread: 3/8-19 BSPP-F
- Shaft Diameter: 3/4 in. / 19 mm
- Flange: SAE J609
- Weight: 18 lbs.
- Dimensions: 8.4” x 8.4“ x 4.8“
- GTIN: 682491114741
