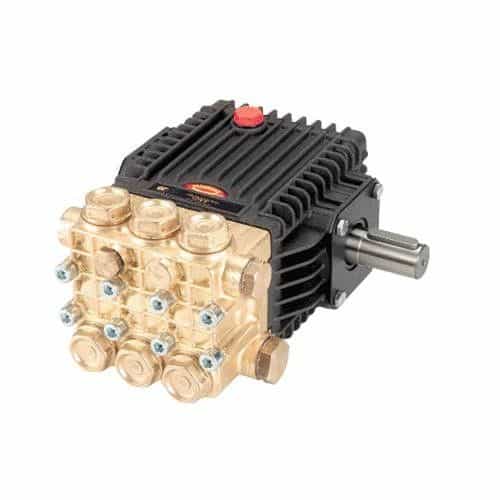

General Pump TX1508S34 Brass Triplex Plunger Pump - 3.0 GPM, 3000 PSI, 3400 RPM
Brand:
Mfr. Model #:
TX1508S34
KR Part #:
GPTX1508S34
Weight:
19.00 lbs
GTIN:
682491119685
An TX Series “63” pump from General Pump. It features a forged brass manifold to maximize its lifespan. Delivers a maximum flow rate of 3.0 GPM.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 14 ounce
Horsepower: 6.2
Inlet Port: 1/2 inch
Max GPM: 3
Max PSI: 3000
Max Temperature: 165 degrees F
RPM: 3400
Shaft Diameter: 24 millimeter
Stroke: 8 millimeter
Product Description
TX Series “63” Pump
The General Pump TX1508S34 is a triplex plunger pump equipped with oversized bearings and a new generation seal system to improve the lifespan of the pump. Manifold is constructed with forged brass. Designed to handle a maximum pressure of 3000 PSI and a speed of 3400 RPM. The pump produces a maximum flow rate of 3.0 GPM.Specifications:
- GPM: 3.0
- PSI: 3000
- RPM: 3400
- Bore: .591 in / 15 mm
- Stroke: .315 in / 8 mm
- HP: 6.2 EBHP
- Maximum Inlet Pressure 125 PSI
- Minimum Inlet Pressure: Flooded
- Crankcase Oil Capacity 14.0 oz.
- Maximum Fluid Temperature 165 Degrees F
- Inlet Port Thread: 1/2 - 14 BSPP-F
- Discharge Port Thread: 3/8-19 BSPP-F
- Shaft Diameter: .945 in. / 24 mm
- Weight: 19 lbs.
- Dimensions 8.4 x 8.3 x 4.8 in
- GTIN: 682491119685
- Flex coupling and bell housing available for direct drive
- Oversized bearings for long life
- New generation seal system for longer life
- Forged brass manifold
