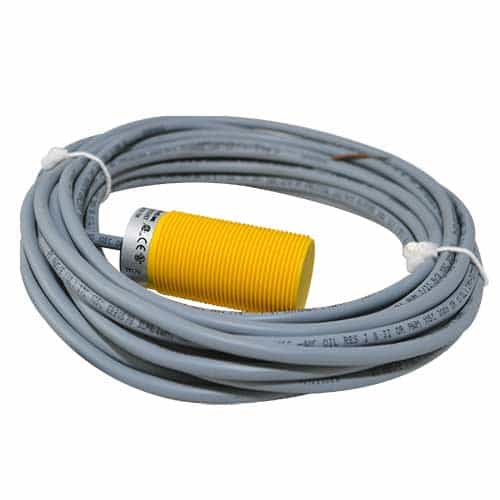

Turck BI10-S30-AZ3X 7M Plastic Threaded Inductive Barrel Sensor- 10 MM, 7 M Cable
Brand:
Mfr. Model #:
BI10-S30-AZ3X 7M
KR Part #:
TPS1090
Weight:
0.70 lbs
This is a plastic housed inductive sensor. Designed to reach a maximum distance of 10 mm. Rated for IP 67 protection standards.
Note: Includes a 7 M cable.
Product Description
M30 x 1.5 Inductive Sensor
Turck's BI10-S30-AZ3X 7M inductive sensor is used as a contactless and wear-free way to detect objects at car washes. Sensing distance reaches a maximum of 10-millimeters. Constructed with a PA12_GF30 plastic housing. Compatible with 20-250 VAC / 10-300 VDC voltage power connections.
Specifications:
-
Design: Threaded Barrel
-
Construction Size: M30 X 1.5
-
Rated Switching Distance: 10 mm
-
Mounting: Flush
-
Operating Voltage: 20-250 VAC / 10-300 VDC
-
Output Function: NO Contact, 2-Wire
-
Electrical Connection: Cable
-
Cable Length (L): 7.0 m
-
Housing Material: Plastic, PA12-GF30
-
Ambient Temperature: -25É+70 °C
- Protection Class: IP67
