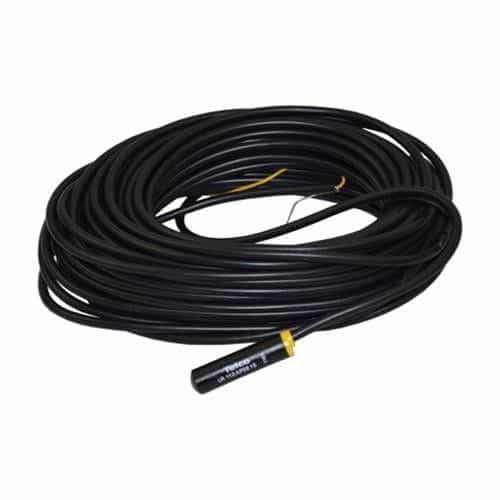

Telco LR110LAP3815 Remote Sensor Receiver - 40m Range, 15m Cable Included
Brand:
Mfr. Model #:
LR110LAP3815
KR Part #:
TLR110AP3815
Weight:
1.25 lbs
Usually Ships in 2 Weeks
Telco LR110LAP3815 Receiver used in remote photoelectric systems. This receiver has up to a 40-meter sensing range and includes a 15-meter cable. Polycarbonate housing and front lens, silicon NPN photo transistor, and green LED power indicator. Pair with a Telco LT110LAP3815 Transmitter.
Technical Specifications
Max Temperature: 149 degrees F
Product Description
40m Remote Sensor Receiver
The Telco LR110LAP3815 Receiver is a sensor component used in remote photoelectric systems frequently found in automatic car washes. It has a polycarbonate housing and lens, a silicon NPN photo transistor, and a green LED power indicator. Includes a 15-meter cable with a PVC sleeve. This receiver is designed for use with a Telco LT110LAP3815 transmitter.
LR110LAP3815 Specifications
- Function: Receiver
- Connection: 15m cable with PVC sleeve
- Sensing Range: Up to 40m
- Power On Indicator: Green LED
- Compatible Transmitter: LT110LAP3815
- Optical Angle: +/- 3° (opening)
- Housing Material: Polycarbonate
- Housing Size: 10mm diameter
- Front Lens Material: Polycarbonate
- Photo Transistor: Silicon NPN
- IP67 rated sealing class
- For advanced specifications, see downloadable data sheet listed under "Manuals"
