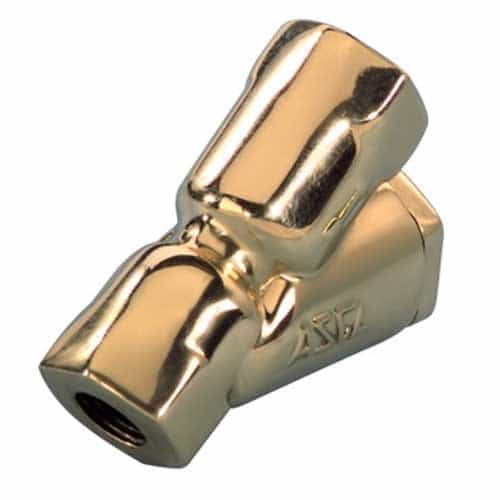

Asco V012-001 Brass Check Valve - 1/4 Inch

Brand:
Mfr. Model #:
V012001
KR Part #:
CV12001
Weight:
1.00 lbs
Usually Ships in 2 Weeks
MSRP
$57.19
Now Only!
$39.42
Compact, high flow brass check valve great for car wash applications.



Technical Specifications

Inlet Port: 1/4 inch
Max PSI: 150
Max Temperature: 200 degrees F

Product Description

Brass Check Valve

Asco check valves provide high flow performance and quiet functionality to facilitate a better wash experience at your facility. Specially designed disc seats before reverse flow to avoid fluid shock on reverse pressure differential.

Size: 1/4" Inlet Pipe (NPT)

Features:

  • Compact design suited for any work environment
  • In-line mounting
  • Quiet and convenient operation
  • Instant shut-off against reverse flow
  • Low forward pressure opening
  • Disc Seats before reverse flow to avoid fluid shock on reverse pressure differential

Specifications:

  • Max Ambient Temperature: 125° F (52° C)
  • Maximum Fluid Temperature: 200° F
  • Maximum Operating Pressure: 150 PSI
  • Minimum Operating Pressure: 0 PSI
  • Orifice Size: 9/32"
  • Seating Elastomer: NBR
  • Cv/Kv Pressure Port: 0.70 Cv - 0.61 Kv
  • Wetted Material: Body, Valve Seat
