General Pump TSF2221L High Flow Triplex Pump, 10.2 GPM, 3000 PSI, Left Shaft

Brand:
Mfr. Model #:
TSF2221L
KR Part #:
GPTSF2221L
Weight:
40.70 lbs
Call For Availability
MSRP
$2,973.99
Now Only!
$849.99

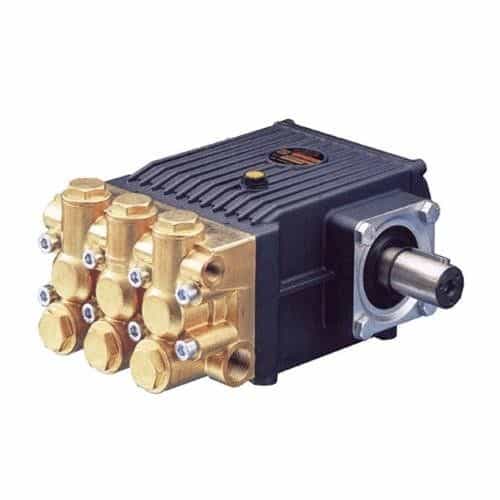

The preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings. Up to 10.2 GPM at up to 3000 PSI. Note: picture shows right shaft, but this is a left hand pump.



Technical Specifications

RPM: 1750
Max PSI: 3000
Horsepower: 21
Crankcase Capacity: 40.6 ounce
Shaft Diameter: 24 millimeter
Stroke: 21 millimeter
Max Temperature: 165 degrees F
Max GPM: 10.2
Inlet Port: 3/4 inch
Bore: 22 millimeter

Product Description

General Pump TSF 66 Series Pump with Left Shaft

The General Pump TSF2221L features one of the leading pump frames in the pressure cleaning industry. A large-capacity fully anodized crankcase and new plunger design with improved thermal shock resistance provide for durability and reliability. Produces consistent high flow at mid-range pressures.

Dimensions: 14.94" x 9.78" x 6.99"

Features

  • New valve cap for improved hydrostatic performance
  • Oversized roller bearings
  • Innovative new seal design for extended seal life
  • Left side crankshaft

Specifications

  • Maximum Flow: 10.2 GPM
  • Maximum Pressure: 3000 PSI
  • RPM: 1750 RPM
  • Max Temperature: 165° F
  • Inlet Port: 3/4"-14 BSP-F
  • Discharge Port: 3/8"-19 BSP-F
