Hydro Systems 113228R SuperDos Chemical Injection Unit 20 - 1:4000 - 1:333

Brand:
Mfr. Model #:
HYD113228R
KR Part #:
DM113228
Weight:
8.05 lbs
MSRP
$1,157.98
Now Only!
$827.15

Fluid powered chemical dispenser that creates homogenous mixtures. Capable of adjusting ratios during operation.




Technical Specifications

Max GPM: 45
Max Temperature: 100 degrees F
Min Temperature: 34 degrees F
Max PSI: 100

Product Description

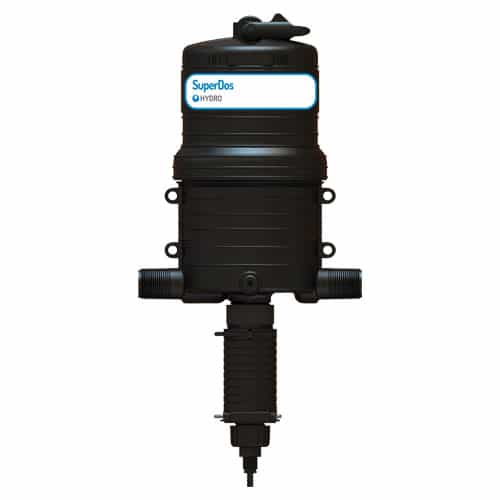

Fluid Powered Proportional Injector

The SuperDos is powered by fluid flow, not electricity. Engineered with a patented internal mixing chamber which creates homogenous mixtures. Features a proprietary composite material in the body. The composite material handles aggressive chemicals. Lower end offers the ability to adjust ratios while operating.

Specifications:

  • Model #: 113228R SuperDos 20 0.3%
  • Description Flow Rate: 0.05 - 20 GPM
  • Operating Pressure: 5 - 100 PSI
  • Injection Rate: 1:4000 - 1:333 (0.025 - 0.3%)
  • Housing: Proprietary engineered composite material
  • Avg. Dosing Accuracy: +/- 5%
  • Repeatability: +/- 3% of Ratio
  • Fluid Maximum Temperature: 100° F
  • Fluid Minimum Temperature: 34° F
  • Maximum Vertical Suction of Concentrate: 3.6 m
  • Maximum Horizontal Suction of Concentrate: 15.0 m
  • Self-priming: Yes

Features:

  • 45 GPM Capacity
  • Patented Chemical Mixing Chamber
  • Perfect for Wettable Powders and Liquid Chemicals
