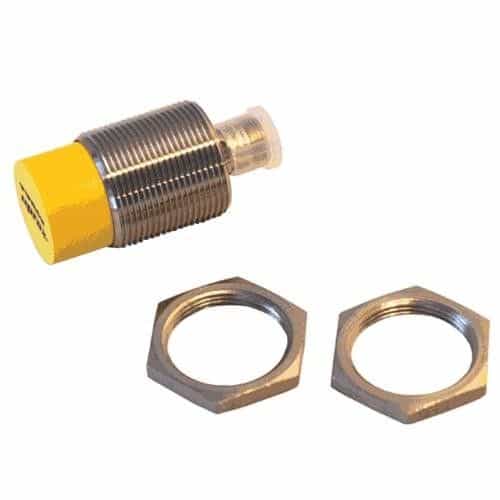

M30 x 1.5 Inductive Sensor

Turck's NI20U-EM30-AN6X-H1141 inductive sensor is used as a contactless way to detect vehicles at car washes. Sensing distance reaches a maximum of 20-millimeters. Constructed with a stainless-steel housing. Compatible with 10-30 VDC voltage power connections.

Specifications:

• Type: NI20U-EM30-AN6X-H1141

• ID no.: 1646350

• Rated Switching Distance: 20 mm

• Mounting Conditions: Non-Flush, Partially Embeddable
• Repeat Accuracy: 2 % of full scale
• Ambient Temperature: -30+85 C

• Operating Voltage: 10-30 VDC

• Residual Ripple: 10 % Uss

• DC Rated Operational Current: 200 mA

• No-Load Current: 25 mA

• Residual Current:  0.1 mA

• Isolation Test Voltage: 0.5 kV

• Short-Circuit Protection: Yes / Cyclic

• Voltage Drop at Ie: 1.8 V

• Wire Breakage/Reverse Polarity Protection: Yes / Complete

• Output Function: 3-wire, NO Contact, NPN

• Switching Frequency: 1.5 kHz

• Design: Threaded Barrel, M30 1.5

• Dimensions: 62 mm

• Housing Material: Stainless Steel, 1.4301 (AISI 304)

• Active Area Material: Plastic, PBT

• Max. Tightening Torque Of Housing Nut: 75 Nm

• Electrical Connection: Connectors, M12 _ 1

• Vibration Resistance: 55 Hz (1 mm)

• Shock Resistance: 30 g (11 ms)

• Protection Class: IP68

• MTTF 874 Years Acc. To SN 29500 (Ed. 99): 40 C

• Switching State: LED, Yellow
