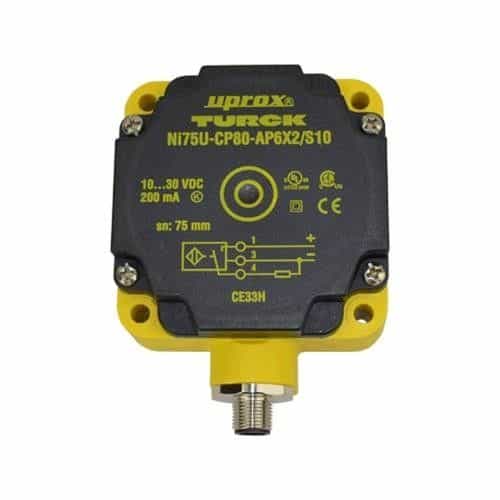

Turck NI75U-CP80-AP6X2-H1141 Inductive Sensor With Increased Switching Distance
Brand:
Mfr. Model #:
NI75U-CP80-AP6X2-H1141
KR Part #:
TPS1055
Weight:
0.26 lbs
Availability:
4
Inductive sensors are designed for wear-free and contactless detection of metal objects. This rectangular CP80 "pancake" switchhas a switching distance of 75mm for large coverage applications.
Product Description
Quick Disconnect Pancake Switch
Uprox Factor 1 sensors have significant advantages due to their patented ferritecoreless multi-coil system. They detect all metals at the same large switching distance and are resistant to magnetic fields.Specifications:
- Rectangular, height 41 mm
- Plastic, PBT‐GF30‐V0
- Factor 1 for all metals
- Resistant to magnetic fields
- Large coverage
- Extended temperature range
- High switching frequency
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
