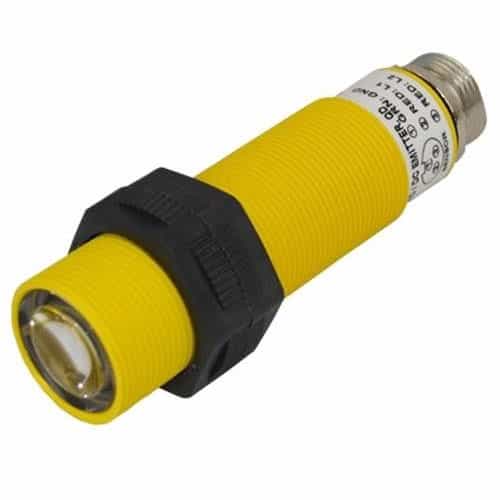

Banner Sensors SMA30PELQD Thermoplastic 500 Ft. Range Opposed Mode Barrel Sensor - SM30 Series, 30 mm, QD Connection

Brand:
Mfr. Model #:
SMA30PELQD
KR Part #:
BPS1040
Weight:
0.50 lbs
Availability:
2
Low Stock Warning
MSRP
$342.00
Now Only!
$244.32
This is a barrel sensor for environments that experience wash-downs. Manufactured with a thermoplastic housing. EZ-BEAM technology delivers reliable sensing.



Product Description

30 mm Barrel Sensor

This sensor is made with thermoplastic. Features a 500 ft sensing range. Engineered to exceed NEMA 6P (IP67) ratings making this sensor an excellent choice for wash-down environments. Input for power is compatible with 10-30 V DC or 12-240 V AC. EZ-BEAM¨ technology provides reliable sensing without the need for adjustment.

Specifications:

  • Sensing Beam: Infrared LED
  • Sensing Mode (General): Opposed
  • Sensing Mode (Detailed): Emitter
  • Housing Style: Barrel
  • Primary Housing Material: Thermoplastic
  • Max Sensing Distance (mm): 150000
  • Outputs: N/A
  • Power Supply/Supply Voltage: 10-30 V dc or 12-240 V ac
  • Connection: Integral QD
  • Quick Disconnect Type: 7/8 in. (Mini)
  • Operation: N/A
  • Min Op. Temp. (°C): -40
  • Max Op. Temp. (°C): 70
  • Output response time (ms): N/A
  • Special Feature: Intrinsically Safe: No
  • Special Feature: Remote Teach: No
  • Special Feature: Water Detection: No
  • Delay at Power-up (ms): N/A
  • Repeatability (µs): N/A
  • Number of Pins: 3
  • IP Rating: IP67
  • NEMA Rating: NEMA 6P
  • Max Op. Relative Humidity [%]: 90% @ 50°C
  • Lens Material: Acrylic
  • Adjustments: N/A
  • Barrel Diameter (mm): 30
  • Indicator: LEDs
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Feature: Hazardous Area: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • DeviceNet: No
  • IO Link: No

Features:

  • Thermoplastic barrel housing
  • 3-pin Mini-style QD3
  • Very high excess gain; 150 m (500 ft) sensing range; 880 nm Infrared LED
  • Positive sealing eliminates even capillary leakage; lens is quad-ring sealed; exceeds NEMA
  • 6P (IP67) Rating - ideal for equipment wash-down environments
  • EZ-BEAM¨ technology provides reliable sensing without the need for adjustment
  • Modulation frequency "A" is standard; frequencies "B" and "C" also available for
    preventing crosstalk in multiple-sensor applications and opposed receiver frequencies must match)
  • AC- and DC-operated receiver models available; emitters feature Universal voltage
  • Range for all models: 150 m (500 ft)
