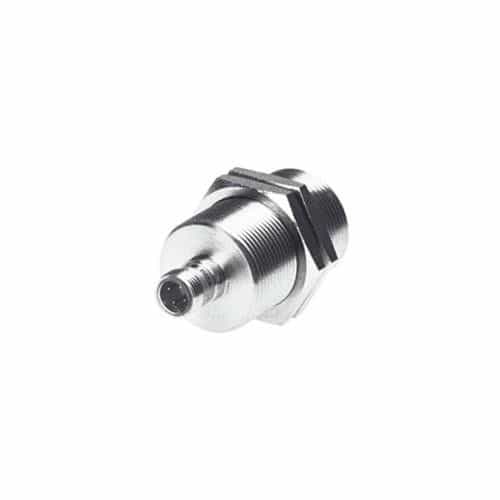

M30 x 1.5 Inductive Sensor

Turck BI10U-EM30-AN6X-H1141 inductive sensor is used as a contactless and wear-free way to detect metal objects at car washes. Sensing distance reaches a maximum of 10-millimeters. Constructed with a stainless-steel housing made for flush mounting. Compatible with 10 to 30 VDC electrical connections.

Specifications:

• ID no.: 1636350

• Rated Switching Distance: 10 mm

• Mounting Conditions: Flush
• Repeat Accuracy: 2% of Full Scale
• Ambient Temperature: -30 to 85 C

• DC Rated Operational Current: 200 mA
• No-load current: 25 mA

• Residual Current: 0.1 mA

• Isolation Test Voltage: 0.5 kV

• Short-Circuit Protection: Yes / Cyclic

• Voltage Drop at Ie: 1.8 V

• Wire Breakage/Reverse Polarity Protection: Yes / Complete

• Output Function: 3-Wire, NO Contact, NPN
• Switching Frequency: 2 kHz

• Design: Threaded Barrel

• Dimensions: 62 mm

• Housing Material Stainless Steel, 1.4301 (AISI 304)

• Active Area Material: Plastic, PBT

• Max. Tightening Torque of Housing Nut: 75 Nm
• Vibration Resistance: 55 Hz (1 mm)

• Shock Resistance: 30 g (11 ms)

• Protection Class: IP68

• MTTF: 874 years acc. to SN 29500 (Ed. 99) 40 degrees C

• Switching State: LED, Yellow


Features:

• M30 _ 1.5 Threaded Tube

• Stainless Steel, 1.4301

• Factor 1 For All Metals

• Protection Class IP68

• Resistant to Magnetic Fields

• Extended Temperature Range

• High Switching Frequency

• DC 3-Wire, 10É30 VDC

• NO Contact, NPN Output

• M12 x 1 Male Connector
