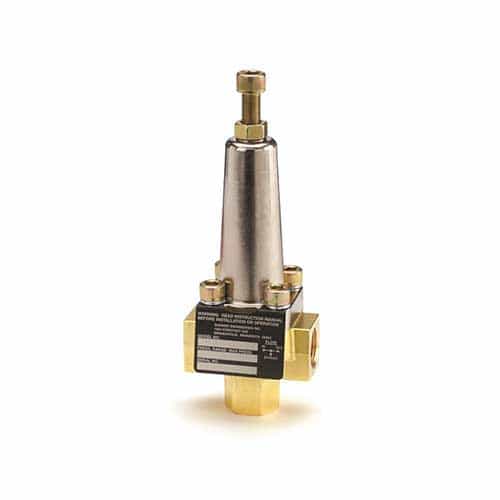

Hydra-Cell C62ABBVSSEF 3/4 in. Regulator Valve
Brand:
Mfr. Model #:
C62ABBVSSEF
KR Part #:
WPC62ABBVSSEF
Weight:
4.21 lbs
Availability:
4
This is a bypass pressure regulating valve from Hydra-Cell by Wanner Engineering. Wanner C62ABBVSSEF handles 14 GPM and up to 2500 PSI.
Technical Specifications
Inlet Port: 3/4 inch
Max GPM: 14
Max PSI: 2500
Max Temperature: 200 degrees F
Product Description
C-Series 3/4" Regulator Valve
The Hydra-Cell C62ABBVSSEF is a 3/4" regulator valve ideal for use with any positive displacement pump. These valves bypass system fluid to prevent excess system pressure. They can also be used as pressure relief valves.
Details:
- 3/4" FNPT inlet/outlet ports
- 3/4" bypass port
- Maximum GPM: 14
- PSI 500-2500
- Maximum temperature: 200 degrees Fahrenheit
- AB model configuration
