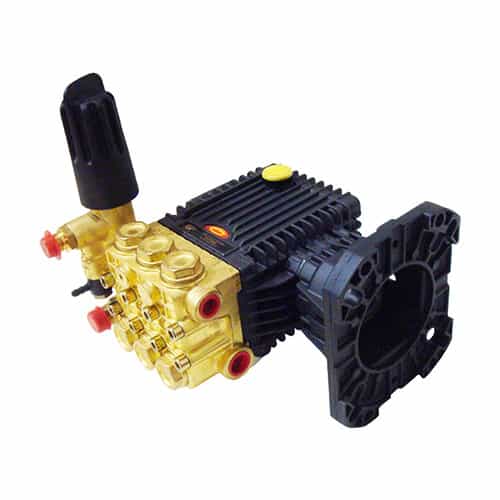

Gas Engine Flanged Plunger Pump

The General Pump TX1510G8UIA Pump is part of the TX Series 63 line of plunger pumps. This heavy duty pressure cleaning pump comes with a flange for gasoline engines (SAE J609-B) and a built-in unloader. Use in applications requiring a pump with a 4.0 GPM maximum flow rate and maximum pressure of 3500 PSI.

Specifications:

• Maximum Volume: 4.0 GPM

• Maximum Pressure: 3500 PSI

• Maximum RPM: 3400 RPM

• Inlet Port: 1/2" NPT-M

• Discharge Port: 3/8" NPT-M

• 14 ounce crankcase capacity

• Bore: 15mm

• Stroke: 10mm

• 13 horsepower

• 125 PSI maximum inlet pressure

• 1" hollow shaft

• Flooded maximum inlet vacuum

• Use GP Series 100 oil for best performance

• Weight: 24 lbs.


Features:

• Flanged for direct coupling to SAE J609B gas engines
• Built-in TP unloader

• Fixed downstream injector

• Fully anodized crankcase

• White ceramic plungers

• Oversized bearings

• Sight glass for easier monitoring

• Oversized white bronze connecting rods

• Larger machined crankshaft - increases load potential and reduces fatigue

• Strongest manifold on the market

• Improved low and high pressure seals

• Reinforced valve cap area

• Positive aligning valve cap

• Support ridges and support ribs for piston guides
