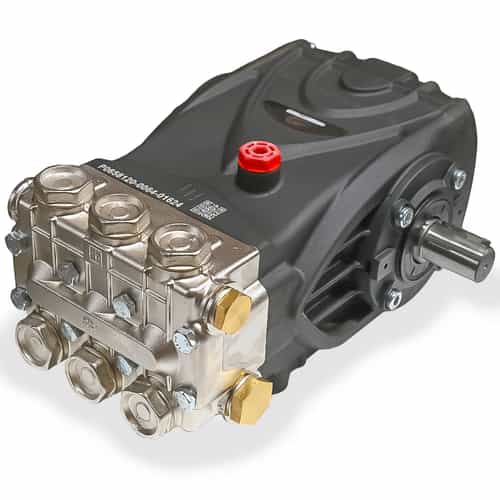

General Pump T9211 Plunger Pump

This acclaimed pressure cleaning unit is a heavy-duty plunger pump with a nickel-plated manifold, oversized connecting rods, strong taper roller bearing, and solid ceramic plungers. Other impressive General Pump T9211 parts include the unitized stainless steel inlet and discharge valves. The list of impressive attributes only grows from there, especially as you explore the pump's many specifications. For instance, it features a maximum of 4 GPM, touts 8.2 EBHP, and can reach a speed of 1750 RPM. The 3000 PSI maximum is a standout trait, too. The T9211 is a sturdy, reliable unit featuring a 20mm bore along with a 10mm stroke.

Dimensions: 12.6" x 9.2" x 6.9"

Specifications:

• Max GPM: 4
• Max PSI Discharge Pressure: 3000
• Max PSI Inlet Pressure: 125
• Max RPM: 1750
• Max Fluid Temperature: 165 F
• 9' water maximum inlet vacuum
• 20mm bore (.787")
• 10mm plunger stroke (.394")
• 24mm shaft diameter (.945")
• 40.6 ounce crankcase oil capacity
• 1/2-14 BSPP-F inlet port
• 3/8-19 BSPP-F discharge port

Features:

• The preferred pump frame in the pressure cleaning industry
• Nickel-plated manifold
• Large-capacity, die-cast, anodized aluminum oil-bath crankcase
• Over-sized connecting rods for maximum life
• Heavy-duty tapered roller bearing
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless steel inlet and discharge valves

General Pump T9211 Parts Repair Kit

• Valve Kit 1
• Seal Kit 2
• Seal Kit 3
• Valve Cap Kit 4
• Valve Cap Kit 5
• Piston Bolt Kit 6
• Head Ring Kit 7
• Retainer Kit 10
• Seal Kit 28
• Seal Kit 69
• Solenoid Valve Kit 71
