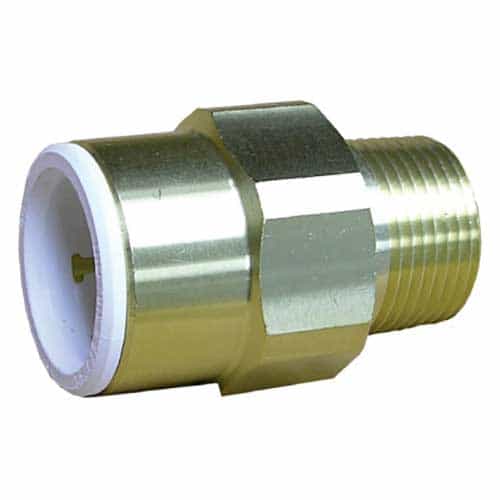

John Guest MWI012024 Brass Housing Male Connector - 1/2 CTS x 1/2 NPT
Brand:
Mfr. Model #:
MWI012024
KR Part #:
PEX8BMC8
Weight:
0.03 lbs
Brass connector fitting with 1/2" MNPT x 1/2" CTS connection points. Used with copper pipe or John Guest Speedfit tubing. 174 PSI max working pressure and 180° F max temperature.
Technical Specifications
Max Temperature: 180 degrees F
Max PSI: 174
Product Description
1/2" Pipe x 1/2" MNPT Brass Push-Fit Connector
The John Guest MWI012024 Brass Connector is used to create reliable, leak-free connections in applications using copper pipe or John Guest Speedfit tubing. Has 1/2" MNPT thread on one end and 1/2" CTS Push-Fit on the other side that greatly increases the speed in which this fitting can be installed in a plumbing line.
Specifications:
- 1/2" CTS (Copper Tube Sizing) - Push-Fit
- 1/2" male NPT
- 180° Fahrenheit maximum temperature
- 68° Fahrenheit normal working temperature
- 174 PSI maximum working pressure
Can Be Used With:
- Copper pipe to BS EN 1057
- Speedfit Barrier Pipe to BS7291
Applications:
- Mains fed and indirect cold water systems
- Vented and unvented hot water systems
- Vented and sealed central heating systems
