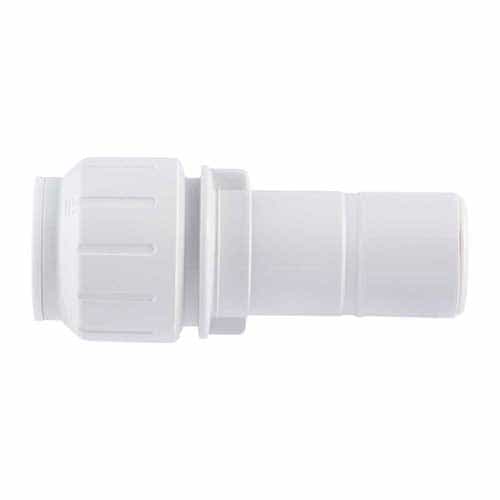

John Guest PEI062820 Plastic Push-Lock Reducer Fitting - 3/4 in. x 1/2 in.
Brand:
Mfr. Model #:
PEI062820
KR Part #:
PEX12R8
Weight:
0.10 lbs
Plastic body reducer with a .75 inch stem connection on one end and a .5 inch pushlock connection on the other end. Usable with PEX, CPVC, and copper materials.
Technical Specifications
Max PSI: 174
Max Temperature: 237 degrees F
Product Description
3/4" Stem x 1/2" Pipe Pushfit Reducer
The John Guest PEI062820 Reducer is a push-lock plastic fitting designed to connect plastic, copper, and CPVC pipe. This corrosion-free fitting connects to a 3/4" pipe and provides a 1/2" push-fit connection. This connection part is ideal for confined spaces and awkward spots where installation can be difficult.
Installation is as simple as pushing the fitting onto the pipe and twisting the plastic nut clockwise until it locks in place.
Details:
- 3/4" stem end
- 1/2" pipe size
- 174 PSI maximum pressure
- 237° Fahrenheit maximum temperature (intermittently)
- 3 Nm maximum torque
- Plastic, corrosion-resistant construction
- Use with plastic, copper, CPCV pipe and tube
Reducer Features:
- Easy installation pushlock connection
- Hot and cold water applications
- Usable for hydronic heating applications
- Can be uninstalled without damage to pipe or fitting
- No fire or flame risk
- Corrosion resistant
- No scale buildup
