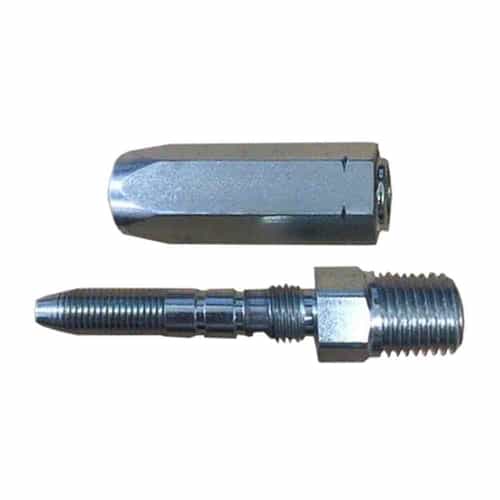

The Parker 20151-4-4 is a hose fitting designed to be reusable and attachable in the field using a vice. It is used with 510D and 518D 100R7 Parflex hoses as well as hoses with a 0.25" inner diameter. The connection end measure 1/4-18 inch NPT threading. Made with steel for strength. Handles medium pressure applications.
Specifications:
Style: Male Taper Pipe Rigid
Hose I.D. (inch): 0.25
Connection Thread Size: 1/4-18 inch
Materials of Construction: Steel
Fitting Type: Field Attachable
Hose Inside Diameter: 6 mm
Port Connection: 0.25 inch, 6 mm
Connection Type: NPT
Length: 2.67 inch
Shape: Straight
Parker #: 20151R-4-4
Features/Benefits:
No crimper needed for installation
Optional deep-well socket assembly allowing for quick, power assist assembly
Full pressure and temperature rating for 100R7 (510D/518D) hoses
