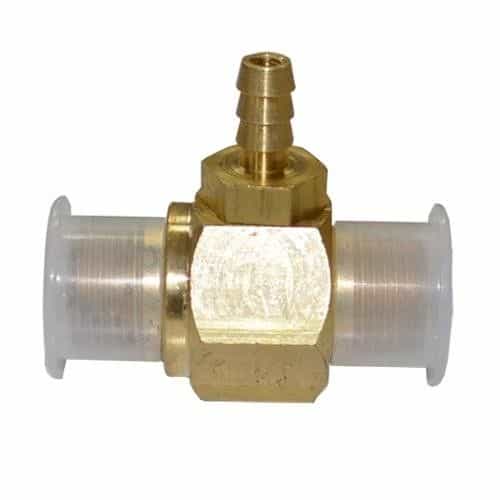

General Pump 100511 Fixed Brass Chemical Injector - 2.1 Orifice, 3.0 to 5.0 GPM, 4000 PSI, 1/4 Inch Hose Barb, 3/8 Inch NPT M x M

Brand:
Mfr. Model #:
100511
KR Part #:
GPP100511
Weight:
0.29 lbs
GTIN:
682491023265
Availability:
1
Low Stock Warning
MSRP
$59.46
Now Only!
$22.50
A fixed injector that dispenses chemicals to car wash water lines. Brass construction resists corrosion. Tolerates a maximum pressure of 4000 PSI and a flow rate ranging from 3.0 to 5.0 GPM.



Technical Specifications

Orifice: 2.1 millimeters
Max PSI: 4000
Min GPM: 3
Max GPM: 5
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max Temperature: 190 degrees F

Product Description

3/8 Inch Fixed Injector

The General Pump 100511 is a fixed chemical injector that features a 1.45 mm orifice. Designed to handle a maximum flow rate of 3.0 to 5.0 GPM. It's brass constructed housing to withstand a maximum pressure of 4000 PSI. Equipped with fluid line connections that measure 3/8" NPT Male x Male and a 1/4" hose barb that connects with chemical lines.


Specifications:
  • Orifice: 2.1 mm
  • GPM: 3.0 to 5.0
  • Max PSI: 4000
  • Inlet: 3/8" NPT-M
  • Outlet: 3/8" NPT-M
  • Temperature: 190° F
  • Hose Barb: 1/4"
  • Material: Brass
  • Nozzle: Stainless Steel
  • Elastomer: Viton
  • Ball: Stainless Steel
  • Weight: 0.29 lbs.
UPC:
  • GTIN: 682491023265
