General Pump 100097 Stainless Steel Fixed Chemical Injector - 2.2mm Orifice, 3-5 GPM, 250 PSI

Brand:
Mfr. Model #:
100097
KR Part #:
GPP100097
Weight:
0.26 lbs
GTIN:
682491021162
Availability:
1
Low Stock Warning
MSRP
$131.61
Now Only!
$49.80

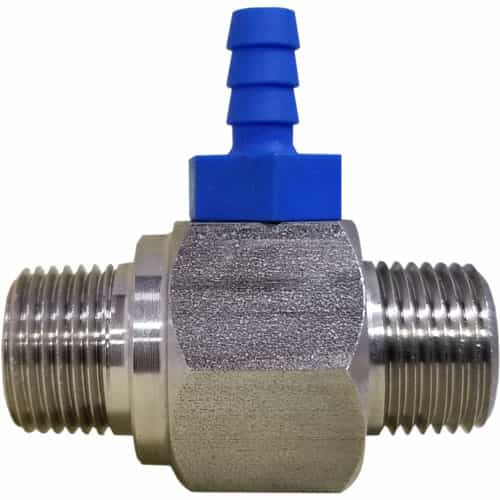

A stainless steel fixed chemical injector. Designed for car wash applications. Orifice measures 2.2mm.



Technical Specifications

Max PSI: 250
Max Temperature: 190 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Orifice: 2.2 mm
Max GPM: 5
Min GPM: 3

Product Description

Fixed Chemical Injector

General Pump's 100097 is a fixed chemical injector that is equipped with Kynar hose barb injects chemicals using a 2.2 mm orifice. Injector is constructed with a 304 stainless-steel body and a 316 stainless-steel nozzle with an EDPM O-ring and a Teflon ball. Inlet and outlet both measure 3/8-inch NPT-M. Handles flow rates ranging from 3.0 - 5.0 GPM.

Specifications:

  • Orifice: 2.2 mm
  • GPM: 3.0 to 5.0
  • Max PSI: 250
  • Inlet: 3/8" NPT-M
  • Outlet: 3/8" NPT-M
  • Temperature: 190° F
  • Hose Barb: 1/4"

Materials:

  • Body: 304 SS
  • Nozzle: 316 SS
  • Hose Barb: Kynar
  • O-Ring: EDPM
  • Ball: Teflon

UPC:

  • GTIN: 682491021162
