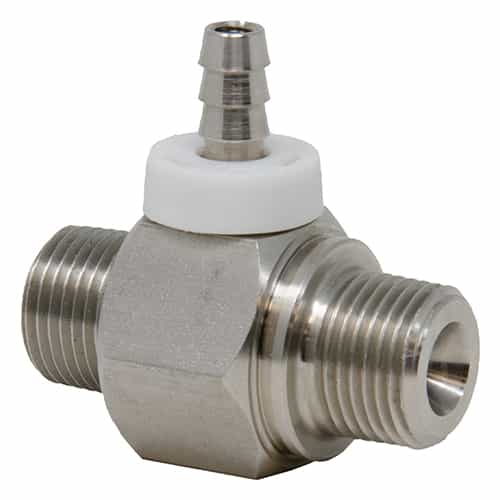

General Pump 100094WT White Hose Barb Stainless Steel Chemical Injector - .063 in. Orifice
Brand:
Mfr. Model #:
100094WT
KR Part #:
GPP100094
Weight:
0.40 lbs
GTIN:
682491124153
Stainless steel chemical injector with a Kynar hose barb chemical port. Max 5500 PSI, 3 GPM, and a 190 F maximum operating temperature. Stainless steel hose barb with white cap denotes a .063" orifice.
Made In The USA
Technical Specifications
Max PSI: 5500
Max Temperature: 190 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max GPM: 3
Orifice: .063 inch
Product Description
5500 PSI Chemical Injector - .063"
The General Pump 100094WT Chemical Injector is designed specifically for car wash applications. This stainless steel chemical injector has a flow rate of 2-3 GPM, a maximum pressure rating of 5500 PSI, and a maximum liquid temperature of 190 F. The barb itself is stainless steel and features a white cap.
Specifications:
- 3/8" NPT-M inlet
- 3/8" NPT-M discharge
- Stainless steel barb with white cap
- 1/4" hose barb chemical port
- .063" barb orifice denoted by white cap
- Max Flow Rate: 2-3 GPM
- 5500 PSI max pressure
- Max Temperature: 190 F
- Fixed design
- Made in the U.S.A.
- Weight: .4 lbs.
- General Pump K320WT Repair Kit available for this injector
UPC
- 682491124153
