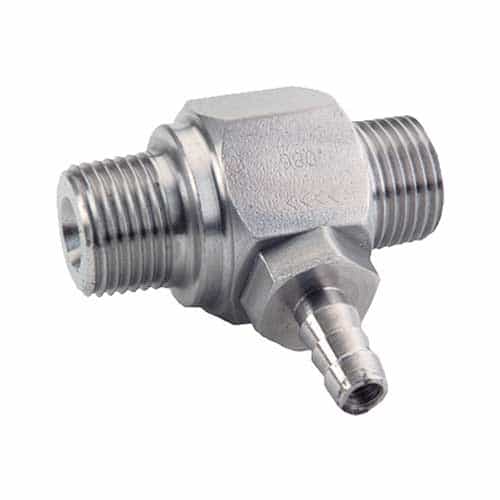

General Pump 100075 All Stainless Steel Hose Barb Chemical Injector - .057 in. Orifice

Brand:
Mfr. Model #:
100075
KR Part #:
GPP100075
Weight:
0.28 lbs
GTIN:
682491023111
In Stock
MSRP
$125.39
Now Only!
$47.45
Stainless steel chemical injector with a fixed hose barb chemical port. 5500 PSI, 2 GPM, 190° Fahrenheit. Steel hose barb with a .057" orifice.
Made In The USA

Made In The USA




Technical Specifications

Max Temperature: 190 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Orifice: .057 inch
Max PSI: 5500
Max GPM: 2

Product Description

Steel Body 5500 PSI Chemical Injector

The General Pump 100075 Chemical Injector is designed specifically for car wash applications. This stainless steel chemical injector has a flow rate of 1-2 GPM, a maximum pressure rating of 5500 PSI, and a maximum liquid temperature of 190° Fahrenheit.

  • 3/8" NPT-M inlet
  • 3/8" NPT-M discharge
  • 1/4" hose barb chemical port
  • .057" orifice
  • 1-2 GPM flow rate range
  • 5500 PSI max pressure
  • 190° Fahrenheit max temperature
  • Fixed design
  • Made in the U.S.A.
  • Weight: .4 lbs.
  • 304 stainless steel body
  • 316 stainless steel nozzle
  • 316 stainless steel ball
  • EPDM elastomers

UPC:

  • 682491023111

Product Reviews

Frequently Asked Questions

Question:Is this .57? - Tom (01/28/2020)
Response:Yes, It is a .057
