Quiet 508 Pump - Left Shaft

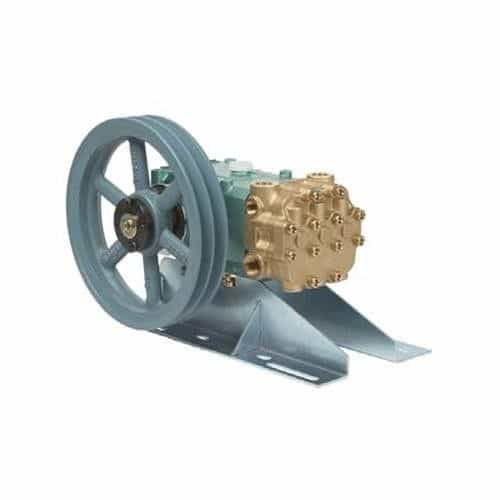

Arimitsu's 61004 is an upgrade package for car wash prep gun units. Used to replace a CAT 820 pump with the quieter 508 pump. The package includes the model 508 pump, rails, 22mm bushing and a 9.75" double groove pulley. Features a crankcase design that delivers quiet operation. This version has a left-hand shaft. Ideal for use with Arimitsu prep gun units.

Includes:

• 508 Pump
• Rails
• 22mm Bushing
• 9.75" Double Groove Pulley

Specifications:

• Flow: 8 GPM
• Pressure: 1200 PSI
• RPM: 950
• Inlet: Pressure: -5 to 70 PSI
• Inlet: ¾"
• Outlet: 1/2" & 3/8"
• Crankcase Capacity: 19 oz.
• Shaft Diameter: 22 mm
• Max Liquid Temperature: 175°F
• Shaft Location: Left
• Weight: 41.40 lbs.

Features:

• Triplex pumps provide smooth liquid flow
• Liquid cooled, low drag seals provide long life, improved suction, higher efficiency and longer dry running without damage
• Balanced flow crankcase design and precision machining ensures uniform lubrication and quiet operation
• Manifold is designed and machined to guarantee superior fluid flow
• Zero-clearance exclusionary seals protect crankcase

Quality:

• 100% stainless steel valve assemblies deliver greater temperature and chemical handling abilities
• Precision ground ceramic plungers utilize a proprietary material blend for long life and increased thermal shock resistance
• Forged brass manifolds offer strength and corrosion resistance
• Proprietary, proven seal blend maximizes life and increases maintenance intervals
• Oversized crankshaft bearings for long life and quiet operation

Maintenance:

• No special tools required for repair or maintenance
• Fluid end is easily serviced without entering crankcase
• Easy access seal case and valve assemblies
• Seals require no adjustment
