2.11 GPM - Electric Motor Driven Pump

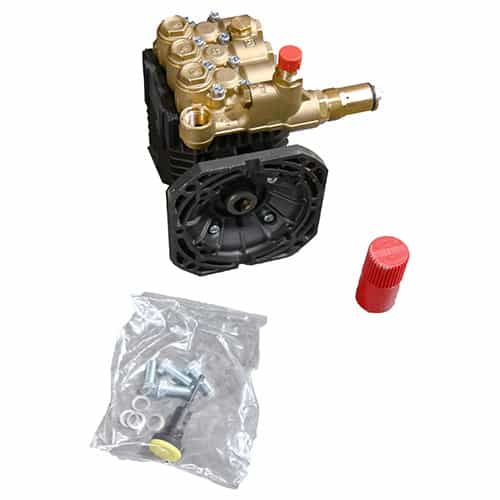

The General Pump T9051EBFU is a triplex plunger pump from the TT Series 51, EBF line of pumps. It includes an unloader. Forged brass manifold is resistant to corrosion and offers increased strength. This pump delivers a flow rate of 2.11 GPM and endures a maximum pressure of 1500 PSI. Ships with a NEMA 56C mounting flange designed for compatibility with electric motors. Great for general cleaning, RO and misting
applications.

Specifications:

• Includes: Unloader
• Maximum Volume: 2.11 GPM
• Maximum Discharge Pressure: 1500 PSI
• Maximum Pump Speed: 1750 RPM
• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 3 ft. water (2.6 Hg)
• Plunger Bore (in / mm): .591" / 15mm
• Plunger Stroke (in / mm): .370" / 9.4mm
• Oil Capacity: 11.2 oz.
• Maximum Fluid Temperature: 165° F
• Inlet Port Thread: 3/8-19 BSPP-F
• Discharge Port Thread: 1/4-19 BSPP-F
• Shaft Diameter: 5/8 in. / 16 mm
• Weight: 11.5 lbs.
• GTIN: 682491119203

Features:

• Forged brass manifold
• Die-cast anodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• The original Interpump unitized, stainless steel, K01 inlet and outlet valves
• Ideal for all general cleaning, RO and misting applications
• Comes standard with NEMA 56C electric motor mounting flange
• Also available in “L” left-handed versions
