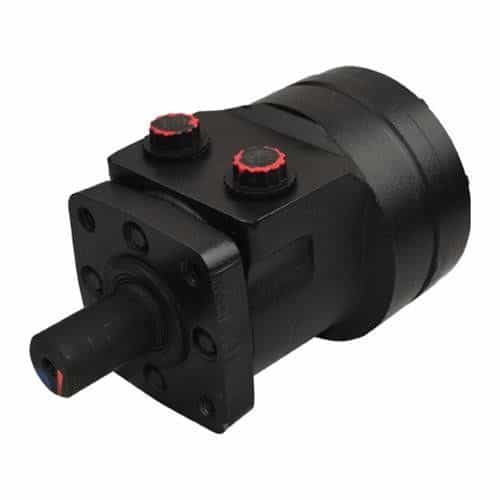

Char-Lynn 103-2030-012 S Plus Series Motor - 15 GPM, 253 RPM, 1700 PSI
Brand:
Mfr. Model #:
103-2030-012
KR Part #:
CL103-2030-012
Weight:
10.50 lbs
Low-speed, high-torque motor that provides constant torque and output motion through fixed displacement. Excellent choice for high-load capacities. The perfect fit for winches, conveyors, process equipment, and agitator drives.
Technical Specifications
Max GPM: 15
Max PSI: 1700
RPM: 253
Max Temperature: 180 degrees F
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
253 RPM Hydraulic Motor
The Char-Lynn 103-2030-012 S-series Gerolor motor is designed with state of the art technology! It produces an optimized drive running angle using just three moving components- the gerotor star, drive, and shaft - to deliver high efficiency performance. Use this S-series motor when powering car wash brushes, agricultural harvesters, food processing equipment, conveyors, and more.
- High-load capacity
- Three moving parts: gerotor-star, drive, and shaft
- 2-bolt flange mount, 3.25 inch pilot
- Maximum operating temperature: 180° F
- Maximum flow rate: 15 GPM continuous; 20 GPM intermittent
- Maximum pressure: 1700 PSI continuous; 2050 PSI intermittent
- Maximum speed: 253 RPM (continuous)
- Maximum torque: 3290 inch pounds continuous; 3843 inch pounds intermittent
- 1/2-14 NPTF motor port
- 1/2-14 NPTF Ports Size 8MP inlet and outlet
- 1" straight shaft
- Char-Lynn item #103-2030-012
Please note: intermittent operation refers to running the pump no more than 10% of each minute.
