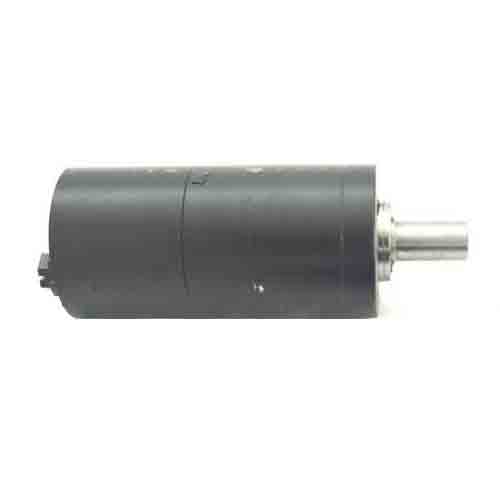

Char-Lynn 129-0004-002 J-Series Motor - 5.5 GPM, 650 RPM, 1750 PSI, End Ported
Brand:
Mfr. Model #:
129-0004-002
KR Part #:
CL129-0004-002
Weight:
8.00 lbs
Usually Ships in 2 Weeks
Low-speed, low-torque J-Series motor that provides constant torque and output motion through fixed displacement. Excellent choice for high-load capacities. The perfect fit for winches, conveyors, process equipment, and agitator drives.
Technical Specifications
Max GPM: 5.5
Max PSI: 1750
RPM: 650
Inlet Port: 9/16 inch
Outlet Port: 9/16 inch
Max Temperature: 180 degrees F
Product Description
1750 PSI Hydraulic Motor
The Char-Lynn 129-0004-002 Hydraulic Gerolor Spool Valve motor is designed with state of the art technology! It produces an optimized drive running angle using just three moving components- the gerotor star, drive, and shaft - to deliver high efficiency performance. Use this J-series motor when powering car wash brushes, agricultural harvesters, food processing equipment, conveyors, and more.
Specifications:
- High-load capacity
- Three moving parts: gerotor-star, drive, and shaft
- 5-bolt mount, 1.239 inch pilot
- Maximum operating temperature: 180° F
- Maximum flow rate: 5.5 GPM continuous; 6.5 GPM intermittent
- Maximum pressure: 1750 PSI continuous; 2175 PSI intermittent
- Maximum speed: 650 RPM (continuous)
- Maximum torque: 446 inch pounds continuous; 546 inch pounds intermittent
- End ported
- 9/16 UNF motor port
- 9/16 UNF Ports inlet and outlet
- 5/8" straight shaft
- Char-Lynn item #129-0004-002
Please note: intermittent operation refers to running the pump no more than 10% of each minute.
