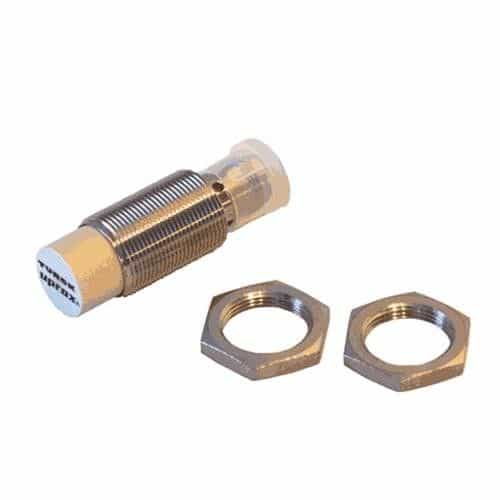

Turck NI12U-EM18WD-AN6X-H1141/S1163 Uprox+ Inductive Sensor - 10-30 VDC
Brand:
Mfr. Model #:
NI12U-EM18WD-AN6X-H1141/S1163
KR Part #:
TPS1001
Weight:
0.26 lbs
An inductive sensor designed for wear-free and contactless detection of metal objects. These sensors help you to automate your car wash bays and are sealed tight, resistant to cleaning chemicals.
Product Description
Factor 1 Food Industry Proximity Switch
These pressure resistant Uprox+ sensors have significant advantages due to their patented ferrite coreless multi-coil system. NI12U-EM18WD-AN6X-H1141/S1163 is an old version with a wound coil system in V4A pipe with LCP cap. They detect all metals at the same large switching distance and are resistant to magnetic fields. This is an 18mm threaded barrel style with a non-embeddable M18 and M12 Eurofast connections. This model is also suited for the food industry with a special double lip seal and a front cap made of liquid crystal polymer, protection against all common acidic and alkaline cleaning agents.Specifications:
- Inductive Proximity
- Factor 1 for all metals
- Stainless steel housing 1.4404
- Liquid Crystal polymer cap
- Food industry
- 12 mm Sensing Range
- Barrel Construction Style, Threaded
- 18 mm Diameter
- IEC IP69K Enclosure Rating
- Special double-lip seal
- Protection against all common acidic and
alkaline cleaning agents - Laser engraved label, permanently legible
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- M12 x 1 male connector
- 1.5 kHz Switching Frequency
