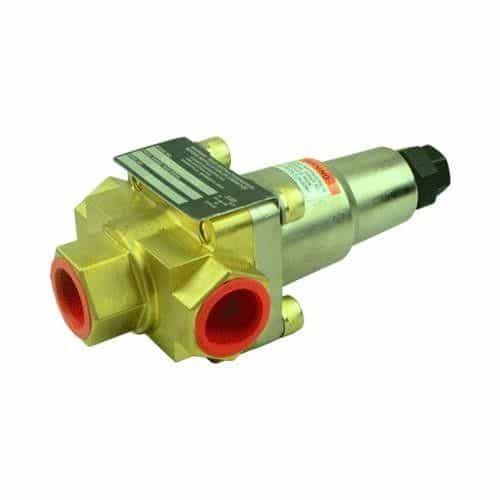

Hydra-Cell C63ABBVSSJG Pressure Regulating Valve - 25 GPM, 2500 PSI, 200°F
Brand:
Mfr. Model #:
C63ABBVSSJG
KR Part #:
WPC63ABBVSSJG
Weight:
8.20 lbs
Availability:
4
Prevents excess pressure build up. Easily service. Designed to reduce flow around critical components.
Technical Specifications
Max PSI: 2500
Max GPM: 25
Max Temperature: 200 degrees F
Inlet Port: 1 inch
Outlet Port: 1 inch
Product Description
C Series Pressure Regulator
Engineered to be used with any positive displacement pump. Prevents build up of excess pressure in the system. Baffles on the plunger and seat direct flow around these components extending their life. To service simply lift the top of the body and replace any worn or malfunctioning components.
Specifications:
- Flow Capacity Maximum: 25 GPM
- Pressure Range: 1000-2500 PSI
- Maximum Temperature 200°F
- Body Material: Brass/Plated Steel
- Inlet Port: 1" NPT
- Outlet Port: 1" NPT
- O-Rings: FKM/PTFE
- Valve Seats: 17-4 Stainless Steel
- Plunger: 17-4 Stainless Steel
- Weight: 8 lbs.
Product Features:
- Accurate and repeatable.
- Adjustable.
- Immediate response.
- Smooth, chatter-free bypass.
- No external springs or moving parts.
- Flow-through design with minimal pressure surge.
- Heavy-duty construction.
