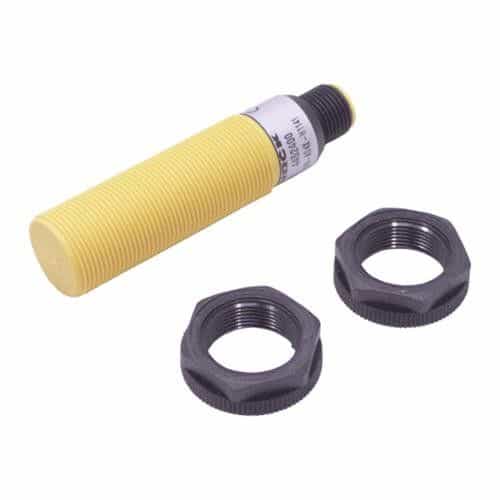

M18 _ 1 Inductive Sensor

Turck's BI5-S18-AD4X-H1141 inductive sensor is used as a contactless and wear-free way to detect metal objects at car washes. Sensing distance reaches a maximum of 5-millimeters. Constructed with a PA12-GF30 plastic housing. Compatible with 10-65 VDC voltage power connections.

Specifications:

• Ident. No.: 4452400

• Rated Switching Distance: 5 mm

• Mounting Conditions: Flush

• Secured Operating Distance: _ (0.81 _ Sn) mm

• Correction Factors: St37 = 1; Al = 0.3; Stainless Steel = 0.7; Ms = 0.4

• Repeat Accuracy: _ 2 % of Full Scale

• Temperature Drift: _ ± 10 %

• Hysteresis: 1É15 %

• Ambient Temperature: -25É+70 °C

• Operating Voltage: 10É65 VDC

• Residual Ripple: _ 10 % Uss

• DC Rated Operational Current: _ 100 mA

• Residual Current: _ 0.6 mA

• Isolation Test Voltage: _ 0.5 kV

• Short-Circuit Protection: Yes / Cyclic

• Voltage Drop at Ie: _ 5 V

• Wire Breakage/Reverse Polarity Protection: Complete

• Output Function: 2-wire, NO Contact, 2-Wire

• Smallest Operating Current: _ 3 mA

• Switching Frequency: 1 kHz

• Design: Threaded Barrel, M18 _ 1

• Housing Material: Plastic, PA12-GF30

• Active Area Material: Plastic, PA12-GF30

• Max. Tightening Torque of Housing Nut: 2 Nm

• Electrical Connection: Connector, M12 _ 1

• Cable Quality:Ø 5.2 mm, LifYY, PVC

• Core Cross-Section: 2 x 0.34  mm2

• Vibration Resistance: 55 Hz (1 mm)

• Shock Resistance: 30 g (11 ms)

• Protection Class: IP67

• MTTF 2283 years acc. to SN 29500 (Ed. 99) 40°C

• Switching State: LED, Yellow
