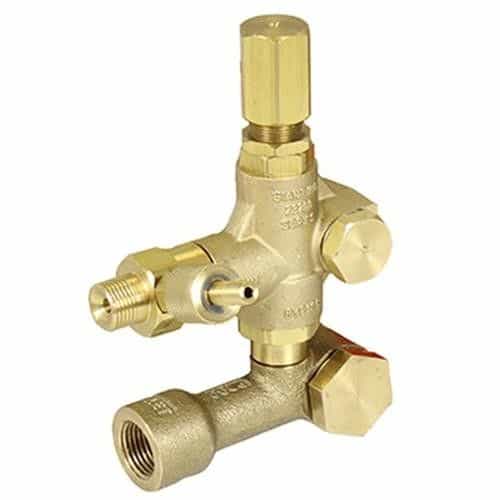

Giant Pumps 23280-2.1A Pressure Actuated Unloader for Direct Mounting to P300 Pump, 4000 PSI, 6.6 GPM, 2.1mm Injector
Brand:
Mfr. Model #:
23280-2.1A
KR Part #:
PU23280-2.1A
Weight:
2.00 lbs
Protect your pumps and easily regulate flow rate in your car wash pump systems. Brass unloader with adjustable 2.1mm injector, 3/8" inlet and outlet. Handles continuous pressure up to 4000 PSI.
Technical Specifications
Max GPM: 6.6
Max PSI: 4000
Max Temperature: 194 degrees F
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Product Description
Pressure Actuated Unloader
The Giant 23280-2.1A pressure actuated unloader is designed for direct mounting to a P300 series pump and features a 2.1mm injector for chemicals. The unloader regulates the flow in the system and maintains system pressure via an adjustable knob that controls the amount of tension on a pressure spring. When no flow is going out the outlet port, all flow is diverted to the bypass port at virtually no pressure. The 23280-2.1A unloader design requires a partial bypass for operation.
Specifications
- Max Pressure: 4000 PSI
- Maximum Flow: 6.6 GPM
- Maximum Temperature: 194 F
- Inlet Port: 1/2" FNPT
- Outlet Port: 3/8" FNPT
