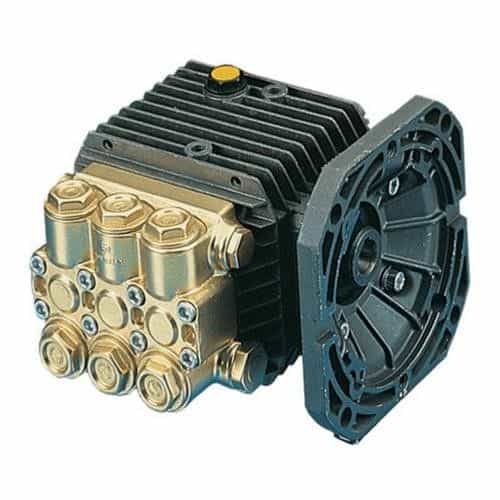

General Pump TP2032C17 Series 51 Pump, 3.2GPM, 2000PSI, 1750RPM
Brand:
Mfr. Model #:
TP2032C17
KR Part #:
GPTP2032C17
Weight:
11.50 lbs
GTIN:
682491142201
General Pump 51 Series flanged plunger pump with brass manifold, aluminum crankcase, and three solid ceramic plungers. Flanged for mounting to NEMA 56C electric motor. Pressures up to 2000 PSI, 3.2 GPM, 1750 RPM.
Technical Specifications
Bore: 18 millimeter
Inlet Port: 3/8 inch
Max GPM: 3.2
Max PSI: 2000
RPM: 1750
Max Temperature: 165 degrees F
Crankcase Capacity: 11.2 ounce
Product Description
General Pump TP2032C17 Series 51 Pump
The General Pump TP2032C17 Series 51 Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 1750 RPM. Has a maximum flow rate of 3.2 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for general cleaning, reverse osmosis (RO) and misting applications!
Dimensions: 7.0" x 7.2" x 5.5"
Features
- Forged brass manifold with exclusive lifetime warranty
- Die-cast anodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning, RO, and misting applications
- Comes standard with NEMA 56C electric motor mounting flange
Specifications
- Maximum Flow: 3.2 GPM
- Maximum Pressure: 2000 PSI
- Maximum RPM: 1750 RPM
- Shaft: 5/8" hollow
- 11.2 ounce crankcase capacity
- Inlet Port: 3/8"-19 BSPP-F
- Outlet Port: 1/4"-19 BSPP-F
- Bore: 18 mm
- Stroke: 7.4 mm
- 165° Fahrenheit maximum temperature
- Right shaft
- Weight: 11.5 lbs.
