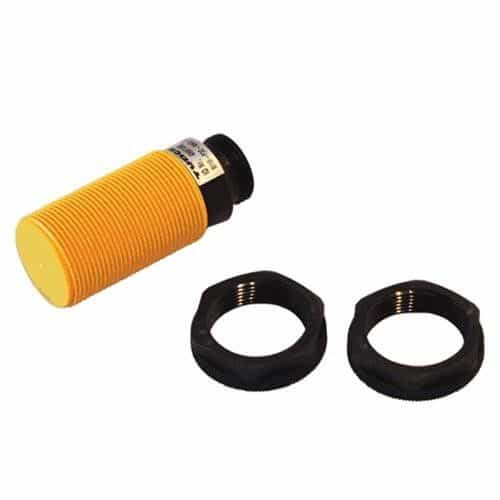

M30 x 1.5 Inductive Sensor

Turck's BI10-P30-AN6X-B2141 inductive sensor is used as a contactless and wear-free way to detect metal objects at car washes. Sensing distance reaches a maximum of 10-millimeters. Constructed with a PA12-GF30 plastic housing. Compatible with 10-30 VDC voltage power connections.


Specifications:

• Ident. no. 46974
• Rated switching distance 10 mm
• Mounting conditions Flush
• Secured operating distance _ (0.81 _ Sn) mm
• Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7; Ms= 0.4
• Repeat accuracy _ 2 % of full scale
• Temperature drift _ ± 10 %
• Hysteresis 3É15 %
• Ambient temperature -25É+70 °C
• Operating voltage 10É30 VDC
• Residual ripple _ 10 % Uss
• DC rated operational current _ 200 mA
• No-load current _ 15 mA
• Residual current _ 0.1 mA
• Isolation test voltage _ 0.5 kV
• Short-circuit protection yes / Cyclic
• Voltage drop at Ie _ 1.8 V
• Wire breakage/Reverse polarity protection yes / Complete
• Output function 3-wire, NO contact, NPN
• Switching frequency 0.5 kHz
• Design Threaded barrel, M30 _ 1.5
• Dimensions 70 mm
• Housing material Plastic, PA12-GF30
• Active area material Plastic, PA12-GF30
• Max. tightening torque of housing nut 5 Nm
• Electrical connection Connector, 7/8''
• Vibration resistance 55 Hz (1 mm)
• Shock resistance 30 g (11 ms)
• Protection class IP67
• MTTF 2283 years acc. to SN 29500 (Ed. 99) 40°C
• Switching state LED, Yellow
