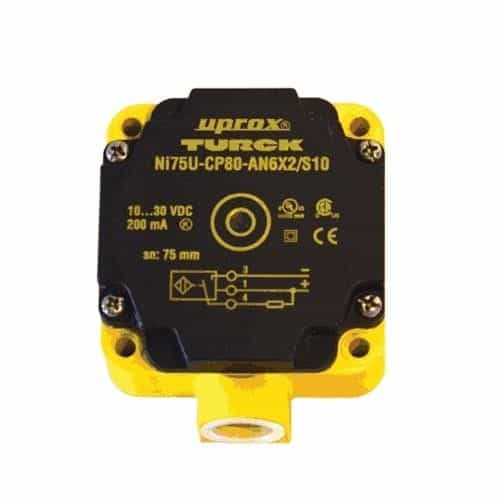

Metal Sensor

An inductive sensor made to detect metals. This sensor is resistant to magnetic fields. Designed for IP67 protection. Operates under an extended temperature range.

Specifications:

• Design: Rectangular
• Construction Size: 80 X 80 X 41 Mm, Cp80
• Rated Switching Distance: 75 Mm
• Mounting: Non-Flush
• Operating Voltage: 10-30 VDC
• Output Function: 3-Wire, No Contact, NPN
• Electrical Connection: Terminal Chamber
• Housing Material: Plastic, PBT-GF30-V0
• Ambient Temperature: -30 to 85 °C
• Protection Class: IP67
• Special Version S10 Corresponds To: Mounting Base With 1/2-14 NPT Thread
• Rated Switching Distance: 75 Mm
• Mounting Conditions: Non-Flush
• Secured Operating Distance: _ (0.81 _ Sn) Mm
• Repeat Accuracy:  2 % Of Full Scale
• Temperature Drift: _ ± 10 %, _ ± 15 %, _ _25 °C V _ +70 °C
• Hysteresis: 3 to 15  %
• Residual Ripple: 10 % USS
• Dc Rated Operational Current:  200 Ma
• No-Load Current: 15 Ma
• Residual Current:  0.1 Ma
• Isolation Test Voltage:  0.5 KV
• Short-Circuit Protection: Yes / Cyclic
• Voltage Drop At I:  1.8 V
• Wire Breakage/Reverse Polarity Protection: Yes / Complete
• Switching Frequency 0.25 KHZ

Features:

• Thread, 1/2-14 NPT
• Factor 1 for all metals
• Protection class IP67
• Resistant to magnetic fields
• Extended temperature range
• High switching frequency
