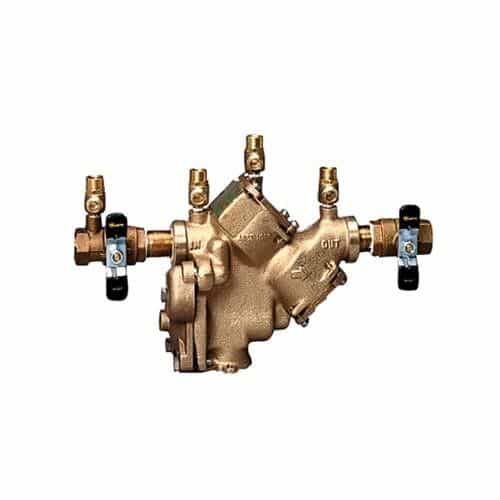

Watts 1 LF909-QT-FS Small Series 1 in. Silicon Bronze Reduced Pressure Zone Assembly Backflow Preventer

Brand:
Mfr. Model #:
1 LF909-QT-FS (F391009)
KR Part #:
WBF909QT16
Weight:
17.00 lbs
GTIN:
098268051186
Usually Ships in 2 Weeks
MSRP
$2,930.78
Now Only!
$2,093.41

Diameter of inlet and outlet is 1 inch. Prevents polluted water from entering a potable water supply. Complies with water authority requirements.




Technical Specifications

Inlet Port: 1 inch
Outlet Port: 1 inch
Max Temperature: 140 degrees F
Max PSI: 175

Product Description

1" Backflow Prevention Valve

Inlet and outlet both measure 1 inch in diameter. Constructed with silicon bronze and lead free materials. Features an exclusive design integrating a patented air-in and water-out principle. Prevents polluted water from entering a potable water supply due to back siphonage. Ideal for use in continuous pressure piping applications, cross-connections identified as health hazards, and service line entrances. Manufactured to comply with national plumbing codes and water authority requirements.

Specifications:

  • Backflow Preventer Type: Reduced Pressure Zone Assembly
  • Body Finish: Cast Bronze
  • Body Material: Lead Free Bronze
  • Body Pattern: Inline
  • Brand Name: Watts
  • Buy American Act Compliant: YES
  • Bypass: No
  • Cap And Tether: No
  • Disc Material: Silicone
  • EAN: 098268051186
  • Elbow Fitting: No
  • Hazard Protection Level: Health Hazard
  • Hot And Harsh Water: No
  • Hydrant Connection: No
  • Inlet Connection Size: 1 IN
  • Inlet Connection Size-Metric: 25 MM
  • Inlet Connection Type: Female Threaded
  • Inlet Shutoff Valve Type: Quarter Turn Ball Valve
  • Inlet Thread Type: NPT
  • Lead Free: YES
  • Maximum Temperature-Fahrenheit: 140
  • Maximum Working Pressure-BAR: 12.10
  • Maximum Working Pressure-PSI : 175
  • Meter Type: No Meter
  • Minimum Temperature - Celsius: 0.50
  • Minimum Temperature-Fahrenheit: 33
  • Outlet Connection Size: 1 IN
  • Outlet Connection Type: Female Threaded
  • Outlet Shutoff Valve Type: Quarter Turn Ball Valve
  • Outlet Thread Type: NPT
  • Part Number: 0391009
  • Polymer Coating: No
  • Pressure Operation: Continuous
  • Protection Type: Backpressure and Backsiphonage
  • Seat Material: Engineered Plastic
  • Series: LF909 Small
  • Strainer: No
  • Tradename: None
  • Type: Kit

Features:

  • Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency conditions
  • Quarter-turn ball valves with tee handles
  • Horizontal or vertical (up or down) installation
  • No special tools are required for servicing
  • Replaceable seats
  • Top mounted test cocks
  • Compact for easy installation
  • Single access cover
  • Lead free bronze body
