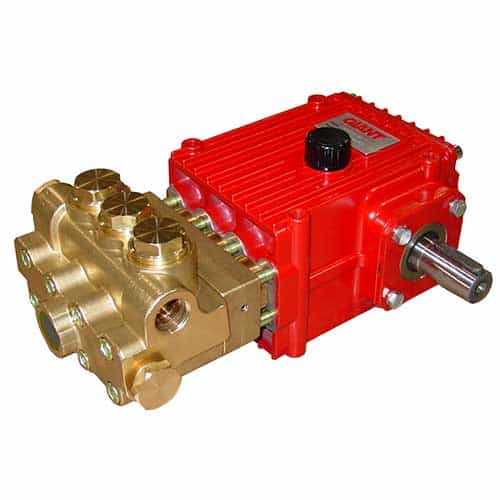

Giant Pump P470R Triplex Pump, 18.5 GPM, 2030 PSI, 1450 RPM Right Shaft
Brand:
Mfr. Model #:
P470R
KR Part #:
PUP470R
Weight:
39.70 lbs
Rugged aluminum crankcase pump with bronze connecting rods and solid ceramic plungers. Nitrile seals with fabric reinforcing for increased longevity. 18.4 GPM max, at up to 2030 PSI.
Technical Specifications
Crankcase Capacity: 27.1 ounce
Max PSI: 2030
Max GPM: 18.4
Stroke: 24 millimeter
Max Temperature: 160 degrees F
Outlet Port: 3/4 inch
Max PSI: 145
Inlet Port: 1/2 inch
Inlet Port: 3/4 inch
Product Description
P470 Right Shaft
The P470R Giant Pump features an aluminum crankcase with sight glass and vented dipstick. Crankshaft is forged and through-hardened for heightened reliability. Also features bronze connecting rods, hardened stainless steel plunger bases, solid ceramic plungers, nitrile seals (with fabric reinforcing), stainless steel valves, and forged brass manifold.
Specifications:
- Maximum GPM: 18.4 GPM
- Maximum discharge pressure: 2030 PSI
- Maximum inlet pressure: 1000 PSI
- Maximum temperature: 160 degrees Fahrenheit
- Stroke: 24 mm
- Plunger diameter: 30 mm
- Inlet ports: (1) 1" BSP, (2) 3/4" BSP
- Discharge ports: (2) 3/4" BSP
- Crankcase oil capacity: 27.1 fl. oz.
Materials:
- Manifold: forged brass
- Plungers: solid ceramic oxide
- Valves: high grade stainless steel
- Seals: nitrile with fabric reinforcing
- Gear end: aluminum
