John Guest PI011624S Plastic Straight Connector - 1/2 in. Tube x 1/2 in. MIP
Brand:
Mfr. Model #:
PI011624S
KR Part #:
JG8MC8
Weight:
0.03 lbs
GTIN:
665626175909

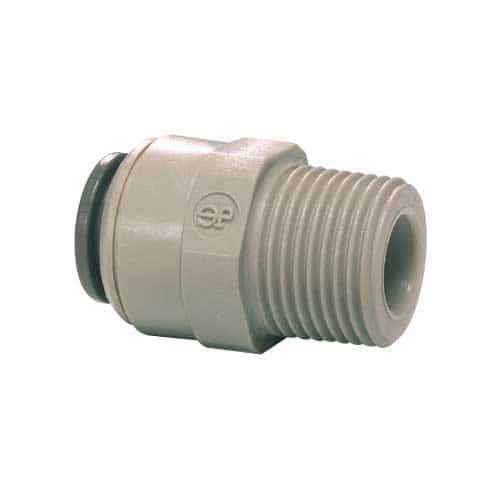

Straight connector fitting made with acetal plastic. 1/2" tube x 1/2" MIP. Usable with copper, brass, and soft metals, as well as PVC, polyethylene, and other plastic tubing with 1/2" outer diameter. NOTE: Image shown is for illustrative purposes, it may not be the exact fitting being sold on this page. See full description for specifications.
Technical Specifications
Max PSI: 145
Max Temperature: 149 degrees F
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
1/2" Tube O.D. x 1/2" MIP Connector Fitting
The John Guest PI011624S Straight Connector is an acetal fitting that provides instant, secure, leak-proof connections without needing tools. Acetal construction allows for a wide range of uses, including chemical supply lines, compressed air systems, low pressure hydraulics and many other industrial applications. Compatible with many types of tubing including nylon, poly, brass, copper, and soft metal.
Quick and easy disconnect - to make a secure connection, simply push tube into fitting and the unique Collet Locking System holds the tube firmly in place without deforming the tube or restricting the flow. To disconnect, simply push the collet and the tube pulls free.
- Port 1: Push-fit connection for 1/2" outer diameter tube
- Port 2: 1/2" male iron pipe connection
- Acetal plastic material
- 145 PSI maximum working pressure
- 149° Fahrenheit maximum working temperature
- 3 Nm maximum torque
- Push-fit connection
- Hot and cold hydronic heating applications
- Lead-free
- Non-toxic
- Can be removed without damage to pipe or fitting
- Non-flammable
- Corrosion-free
- Scale-resistant
