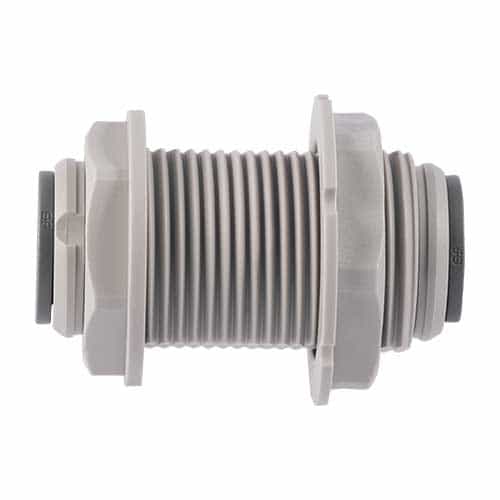

John Guest PI1216S Durable Plastic Bulkhead Union - For 1/2 Inch O.D. Tube
Brand:
Mfr. Model #:
PI1216S
KR Part #:
JG8BU
Weight:
0.11 lbs
Acetal bulkhead fitting for tube with 1/2" outer diameter. Use with PVC, copper, polyethylene, and other plastic tubing. Lead-free and non-toxic. Thread on the fitting is 3/4" male NPT.
Technical Specifications
Max PSI: 145
Max Temperature: 158 degrees F
Product Description
1/2" Tube Bulkhead Fitting
The John Guest PI1216S Bulkhead Connector is an acetal plastic fitting that provides a leak-free connection to mount tube to the wall of a tank or container. This durable plastic fitting is ideal for fast installation in confined places and hard-to-reach spots in car wash plumbing systems.
- Two push-fit connections for 1/2" outer diameter tube
- Main body of the fitting has 3/4" MNPT thread
- Acetal resin plastic material
- Straight bulkhead fitting for tank and container wall mounting
- 145 PSI maximum working pressure
- 158° Fahrenheit maximum working temperature
- Push-fit connection
- Hot and cold hydronic heating applications
- Lead-free
- Non-toxic
- Can be removed without damage to pipe or fitting
- Non-flammable
- Corrosion-free
- Scale-resistant
- Suitable for food and beverage applications - FDA and NSF approved
Use With These Tube Types:
- Plastic - Polyethylene, nylon, and polyurethane
- Braided tube
- Soft metal - Brass, copper, mild steel
