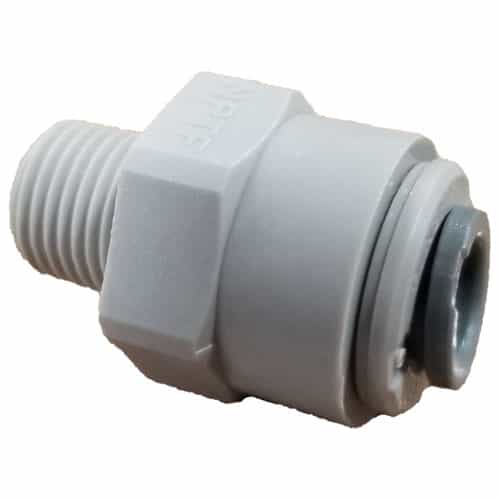

John Guest PI010823S Speedfit Plastic Adapter Fitting - 1/4 Push-Fit x 3/8 MIP
Brand:
Mfr. Model #:
PI010823S
KR Part #:
JG4MC6
Weight:
0.02 lbs
Straight connector fitting made with acetal resin plastic. Fits PVC, copper, polyethylene, and other plastic tubing. Lead-free and non-toxic.
Technical Specifications
Max PSI: 145
Max Temperature: 149 degrees F
Product Description
1/4" Tube and 3/8" MIP Thread Connecting Adapter
The John Guest PI010823S Straight Adapter has a push-fit connection for 1/4" outer diameter tube on one end and a 3/8" MIP thread connection on the other end. This acetal fitting can be used with various types of plastic tubing, braided tubing, and soft metal pipe. This Speedfit car wash fitting is ideal for fast installation in confined places and hard-to-reach spots.
- 1/4" Pipe O.D. x 3/8" MIP thread
- Acetal plastic material
- 145 PSI maximum working pressure
- 149° Fahrenheit maximum working temperature
- 3 Nm maximum torque
- Push-fit connection
- Hot and cold hydronic heating applications
- Lead-free
- Non-toxic
- Can be removed without damage to pipe or fitting
- Non-flammable
- Corrosion-free
- Scale-resistant
- Weight: .02 lbs.
Use With These Tube Types:
- Plastic - Polyethylene, nylon, and polyurethane
- Braided tube
- Soft metal - Brass, copper, mild steel
