Fluid-O-Tech PA301 Brass Rotary Vane Pump - 1.75 GPM, 290 PSI, 1725 RPM

Brand:
Mfr. Model #:
PA301
KR Part #:
FTPA301
Weight:
1.96 lbs
In Stock
MSRP
$117.56
Now Only!
$75.36
A low flow rotary vane pump designed with a carbon graphite pumping chamber and vanes. Equipped with NBR seals. It delivers a maximum flow rate of 1.75 GPM.



Technical Specifications

Max GPM: 1.75
Max PSI: 290
RPM: 1725
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch

Product Description

PO 70-400 Series Rotary Pump

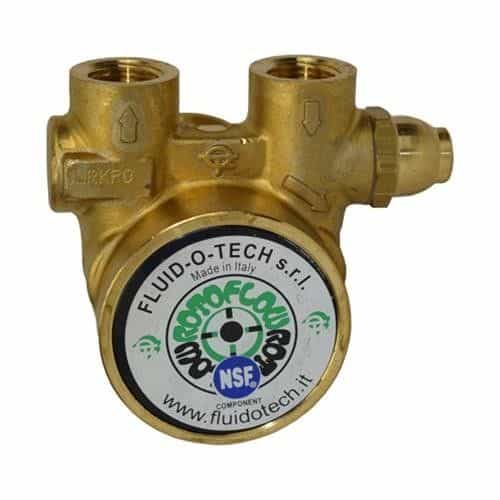

The Fluid-O-Tech PA301 is a low flow rotary vane pump designed with a pumping chamber and vanes made with carbon graphite to provide pulsation free operation and a smooth flow. Seals are made with NSF approved NBR. Created with a brass housing and 3/8" NPT ports. This pump mounts directly to a NEMA 48Y motor using a v-band clamp or to M71, M80 IEC and NEMA 56C motors with adapter and coupling.

Specifications:
  • Series: PO 70-400 Series
  • Flowrate: 1.75 GPM (105 GPH)
  • Housing Material: Brass
  • Bypass: Standard
  • Seal Material: NBR (NSF Approved)
  • Pumping Chamber: Carbon Graphite
  • Speed Limit: 1725 RPM
  • Max Pressure: 290 PSI
  • Ports: 3/8” NPT
Features:
  • Self priming
  • Quiet operation
  • Pulsation free flow
  • Long service life
  • NFS and WRAS listed
Applications:
  • Beverage vending machines
  • Post mix drink dispensers
  • Espresso coffee machines
  • Water treatment
  • Water dispensers
  • Cooling systems

Product Reviews

0  Customer Review(s)
5 Star
0  (0%)
4 Star
0  (0%)
3 Star
0  (0%)
2 Star
0  (0%)
1 Star
0  (0%)

CID: -1 QueryString:fluid-o-tech-pa301-brass-rotary-vane-pump-1-75-gpm-290-psi-1725-rpm| Runtime:falsep-22204.aspx/p-22204.aspxen-US1https://www.kleen-ritecorp.com/9/25/2023searchEngineName=fluid-o-tech-pa301-brass-rotary-vane-pump-1-75-gpm-290-psi-1725-rpmcompunix.productreviews.xml.config10148904283TrueUSDTrue44.192.254.1730TrueFalse9:57 PM1FalseUSDTrueen-USFalse0en-US222041FalseFalseproduct| LastCustomerReview:
Frequently Asked Questions
Question:What is flow rate?, or cavity size? - Gaunt (08/29/2020)
Response:This is rated for 100 Gallons Per Hour
